2010 Coastal Craft 45

Additional Information

PRINCIPLE FEATURES

Two staterooms with two heads

Marine aluminum construction

Yacht finishing

High quality yacht construction

Constructed to ABYC yacht standards

7 to 27 knot cruising speeds

31 knots top speed

Impressive performance using Volvo IPS

Lower maintenance and operating costs

Superior strength

Low sound levels

Diesel engines offer excellent fuel economy

Large swim step area

3 helm stations

Cockpit lounge scating

Fly bridge with seating for 10

Excellent sight lines from lower helm

Spacious master stateroom

Large head with separate shower

Chef's galley

Yacht cherry interior finish work

E-Plex network switching & monitoring

Hydronic (hot water) diesel heating

Radar/Plotter/Sounder

Autopilot

Automatic lire suppression system

Bose entertainment center

Window blinds

Awlgrip8 paint system

Antifouling paint



PRINCIPLE CHARACTERISTICS

Length overall 501 6"

Length on deck 42*0"

Length (a waterline 40* S"

Beam - maximum 151 31

Depth 7° 4"

Draft (bottom of drives) 31 61

Height above waterline 15: 6'

Displacement - fully loaded 37.500 Ibs

Displacement - lightly loaded 29,500 lbs

Fuel capacity 400 US gal

Fresh water capacity 100 US gal

Black water capacity 28 US gal

Propulsion (2) Volvo IPS 600

Engine (2) Volvo D6-435

Propellers (2) Volvo "Nibral"

Fuel Diesel

Generator Northern Light 6 KW

Maximum Speed 31 knots

Max Cruising Speed 27 knots

Range (à 27 knots 300 NM

Range (a 8 knots 900 NM



SPECIFICATION

1

Construction

Marine aluminum construction

5/16" 5086-H1 16 bottom plates

5/16" 5086-H116 transom & chines

3/16" 5086-H01 16 side plates

5/32" & 3/16" 5052-H32 decks

5/32" cabin and fly bridge

¼' X 6 kecl bar

5/16" & 3/8" longitudinal/transverse framing

Welding- Pulse Mig Tech

Soundown® hull, deck and cabin insulation

Awlgrip8 complete fairing & paint system

Italian-Lite & Nida-Core panels (interior joinery)



2

Deck Hardware

All exterior fittings & fasteners in 316 stainless steel

3* D-Rubber fender rail around swim step

9 deck cleats polished aluminum (welded)

55 lb Delta® anchor (Galvanized)

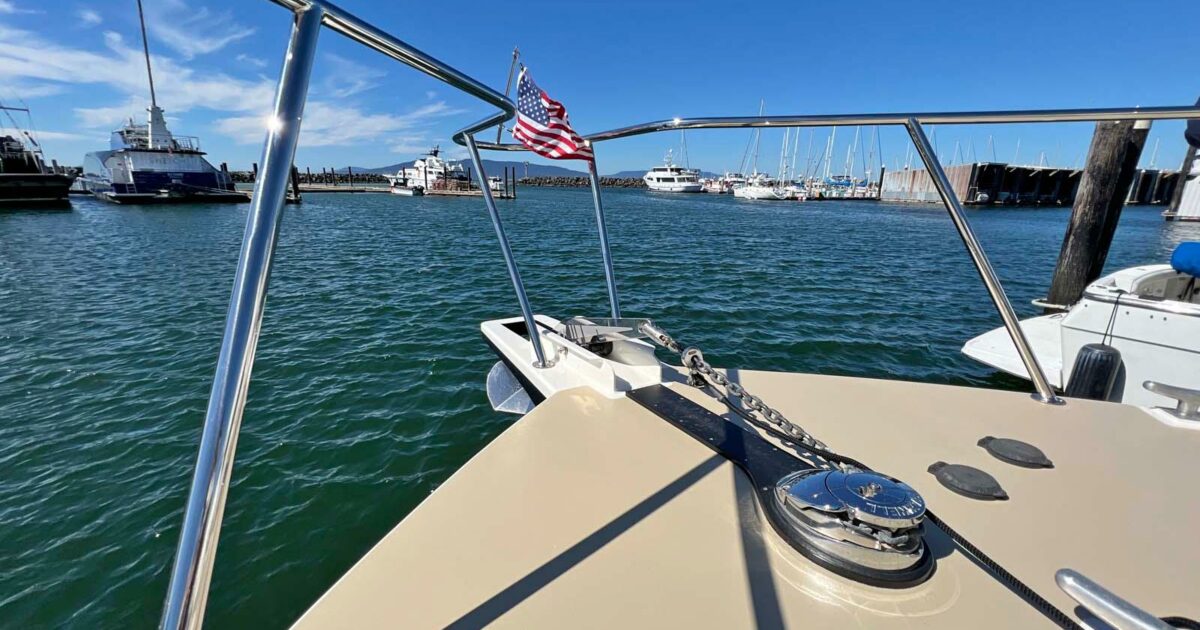

RC10 Anchor windless (3 station remote)

200' chain & 300* ½" rope (marked) with chain stay

Pulpit with anchor roller assembly

Safety glass (Tempered) windshield

Side windows (4 sliding, 2 non-opening) (tinted)

Rear windows (2 sliding, 1 non-opening) (tinted)

Hinged rear door with full height window (tinted)

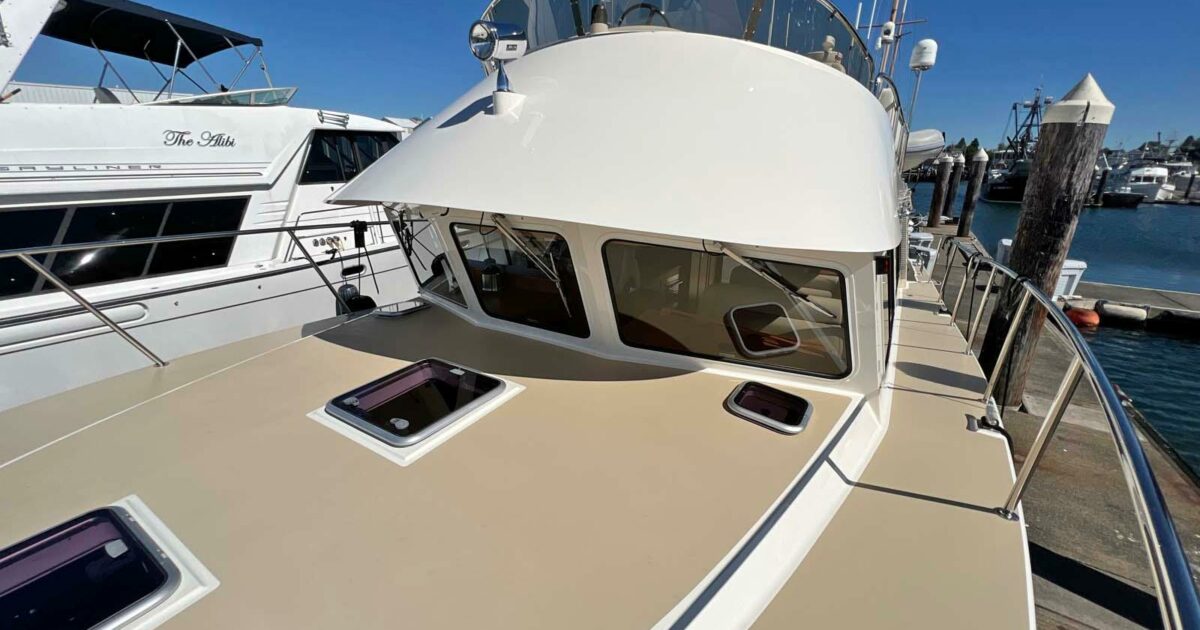

"Lewmar" deck hatches (2-20", 2-12"') in foredeck

Non-slip deck coatings on side and foredeck

Freeman® Hatch (weld-in) in swim platform

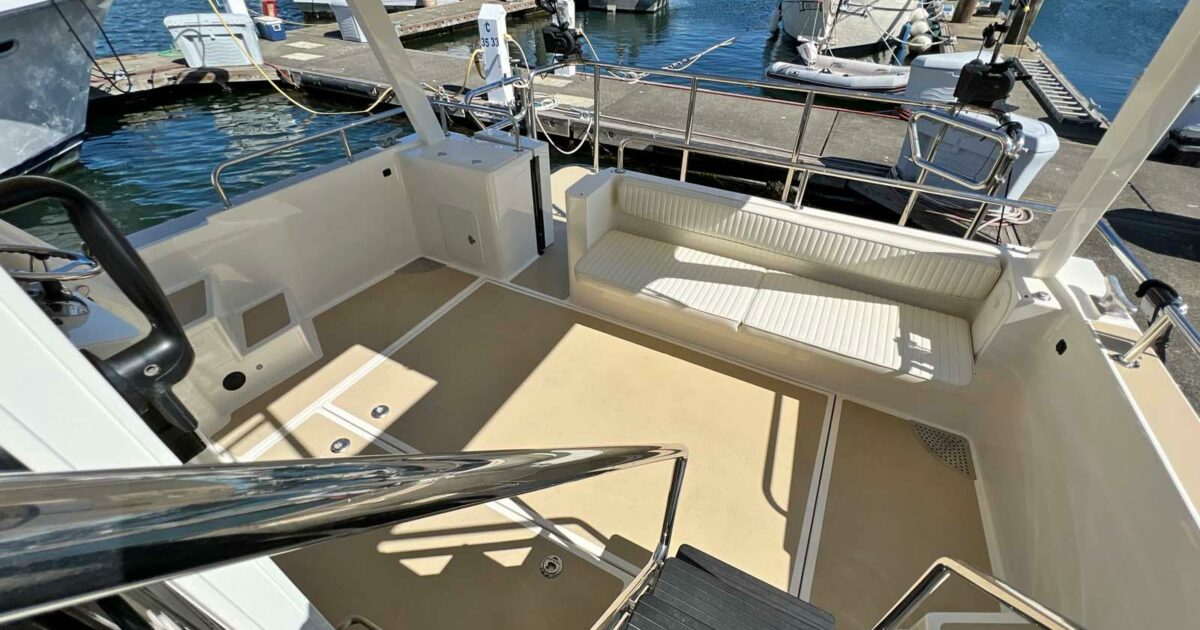

3 Aft cockpit

Cockpit hardtop cover with recessed lights

Cockpit control console including, Volvo steering,

controls, start/stop panel, autopilot remote, Raymarine

E140 display, Volvo Joystick Controls

Self bailing cockpit with deck scupper drains

Cockpit steps from cockpit deck up to side decks

Cockpit bench seat with Sunbrella cover

Transom sink with pull out shower head (hot/cold)

Handheld fire extinguisher

Hinged transom door

Engine room access hatch

Stainless steel grab rails (1.25") rear cabin

Swim Platform (66" long) with integral fish boxes

Staple rails with side gates, (3) downrigger mounts

and power points.

Boarding ladder (under swim step mounted)

Low level LED lights in side pancls

Two Paradigm0 waterproof speakers

Fresh & raw water wash down



4

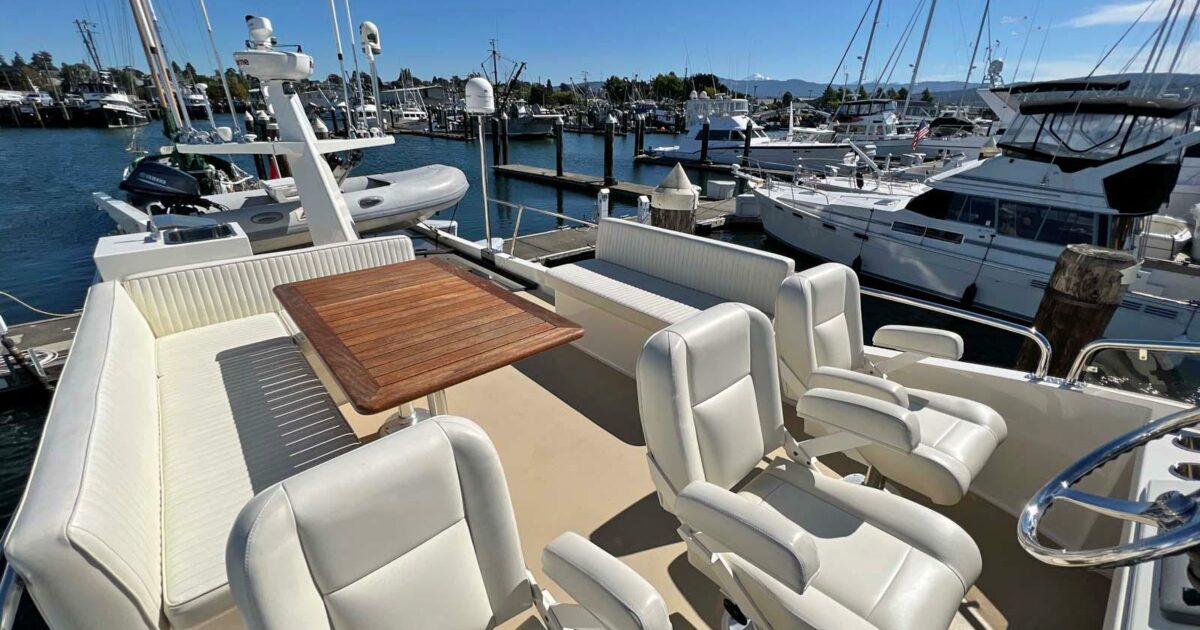

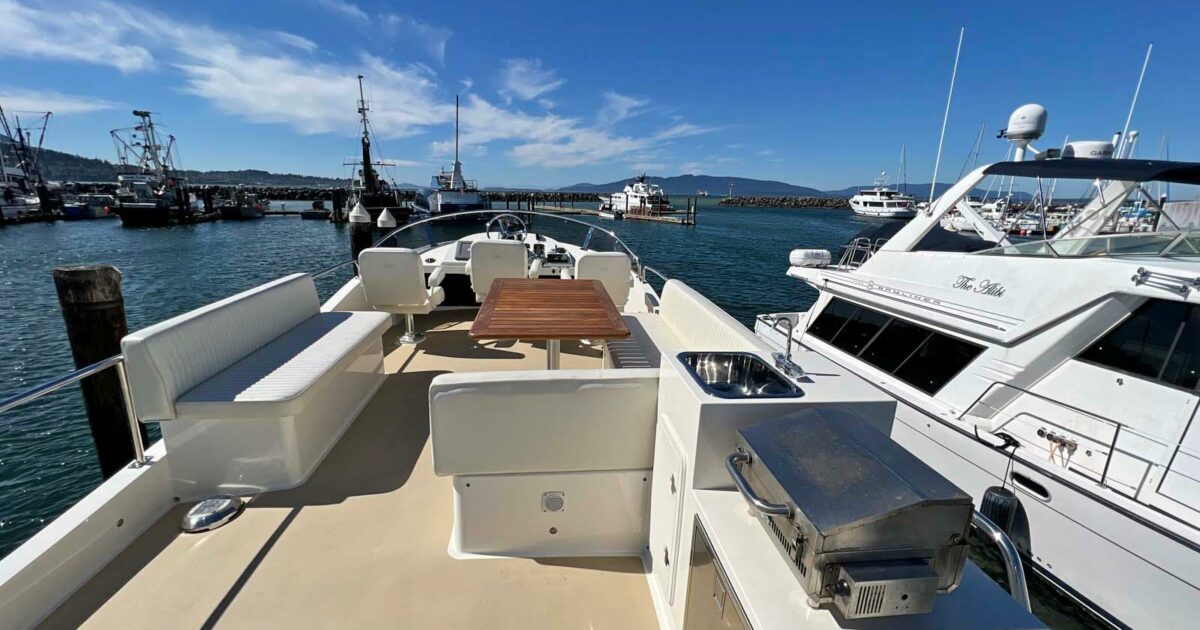

Fly bridge

SS staircase with sliding hatch

Deck drains

Non-slip deck coatings

Lexan (tinted) windscreen/visor

3 custom helm seats with armrests & covers

Settee arrangement with teak table (seating for 5)

Lounge seating across from Settee (scating for 3)

Stainless steel rails (1.25")

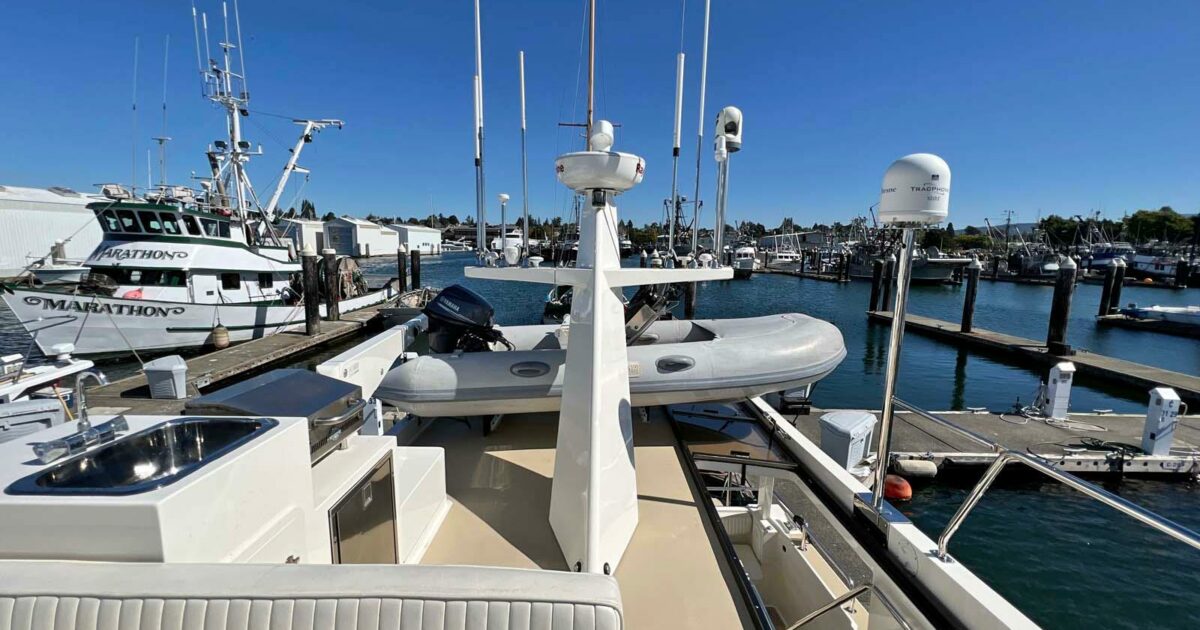

Radar tower with antenna and GPS sensor mounts

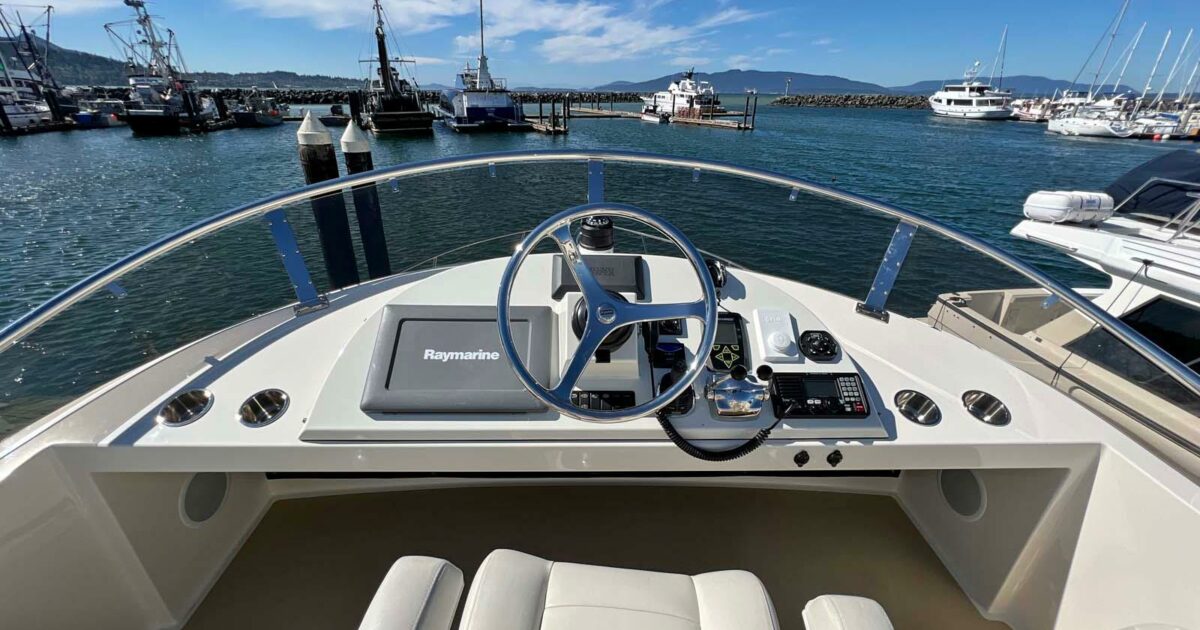

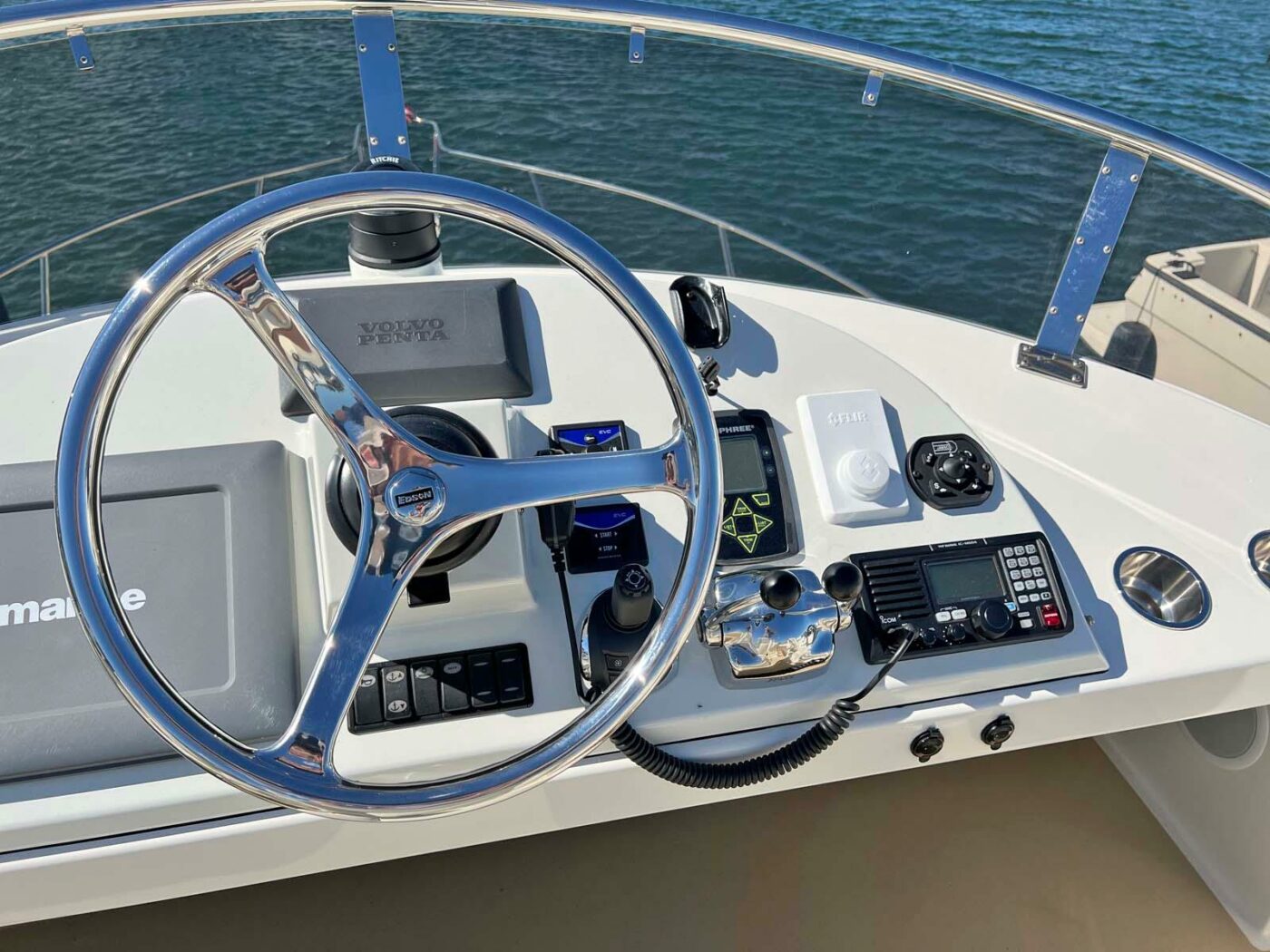

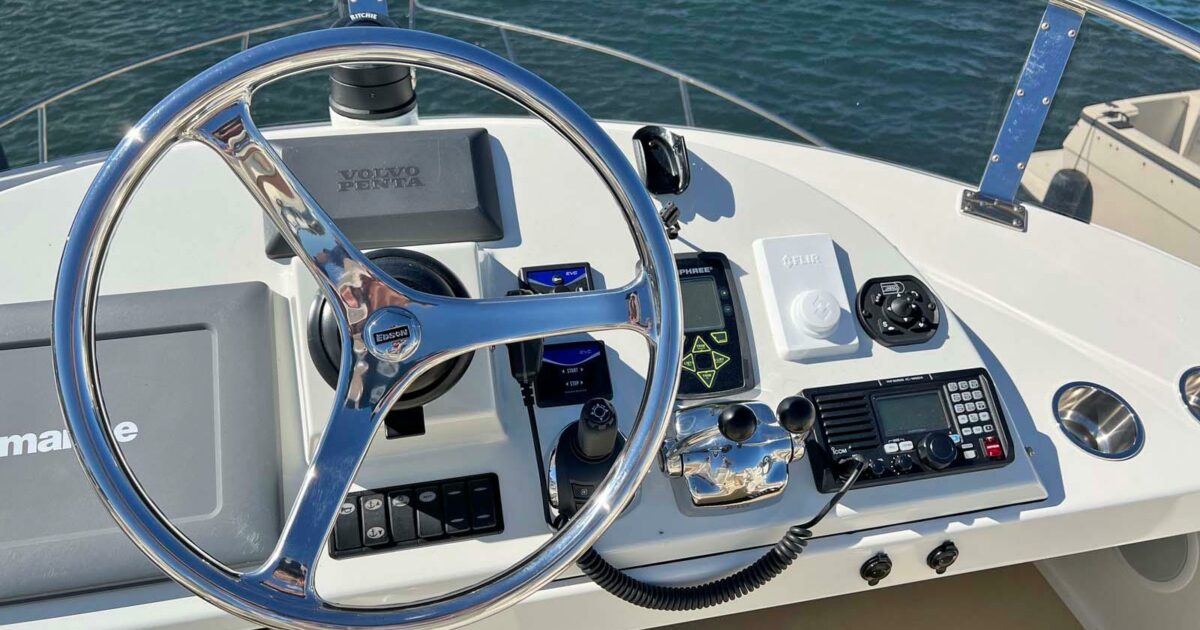

Upper helm console with cover

Tilt steering with Edson Steering wheel

Electronic engine and transmission controls

Volvo? EVC pancl

Volvo0 engine management panels

Volvo Joystick Control

E-Plex? Contoured switching panel

Humphree® trim tab controls

Ritchic D55 Compass

Raymarine2 E140 display (networked)

Icom® 604 VHF radio

Raymarine® Autopilot

Remote Scarchlight Control Panel

Stainless stecl drink holders (4)

Two Paradigm08 waterproof speakers with amplifier

Low level LED lights in side panels

12V power point (2)



5

Salon

Interior cabinets and panels are finished in cherry

Teak & Holly flooring

Cherry wall panels and wood window returns

"Jackson" window blinds mounted in valances

Soft Touch ceiling panels with foam backing

CC helm seat (small double) with armrests

(cabinet with 2 drawers beneath helm seat)

Chart & chart book locker above Aft Stateroom top

Port side double wide passenger sating (forward)

Port side Settee "U" shaped arrangement

"Ultra Leather" upholstery in Salon

Starboard galley

Bose® Lifestyle 35 entertainment system d

DVD/CD/Tuner 5 cube interior speakers with sub

Low level LED lights in cabinet and furniture kicks

SS (brushed) recessed ceiling lights on dimmer

Storage compartment under salon floor

32" LCD TV

Ceiling mounted TV/Entertainment cabinet



6

Galley

Galley includes lower cabinets "L" shaped

2 banks of drawers and cupboards

Brushed stainless steel flush latches (locking)

Avonite8 countertops and back splash

Subzero& fridge (5.0 cu/ft)

Freezer (5.0 cu/ft) in port front seat cabinet

Seward& cook top stove (3 bumer)

Galley hood/extraction fan

Built in Bosch® convection microwave

Stainless steel (double) under mount galley sink

Grohe2 Galley faucet (single lever)

Hot and cold water

Scagull& Water purifier

Floor pantry

Slide out pantry in helm seat backrest with upper

storage accessed through flip up lid.

Two AC outlets

Handheld fire extinguisher

First aid kit

Teak & Holly Nooring

Soft Touch ceiling panels with foam backing

Stainless steel (brushed) recessed ceiling lights on

dimmer switching

Low level LED lighting mounted under cabinet kicks



7

Forward Head

Vanity includes lower and upper cabinet

Vanity drawers and mirrored upper cabinet doors

Avonite8 or Corian& countertop and backsplash

Stainless steel under mounted vanity sink

Vanity faucet and soap dispenser

Quiet flush toilet (full size)

(Fresh water flush)

AC outlet

Towel bar

Teak & Holly flooring

Ceiling and vanity light

Overhead deck hatch with screen



8

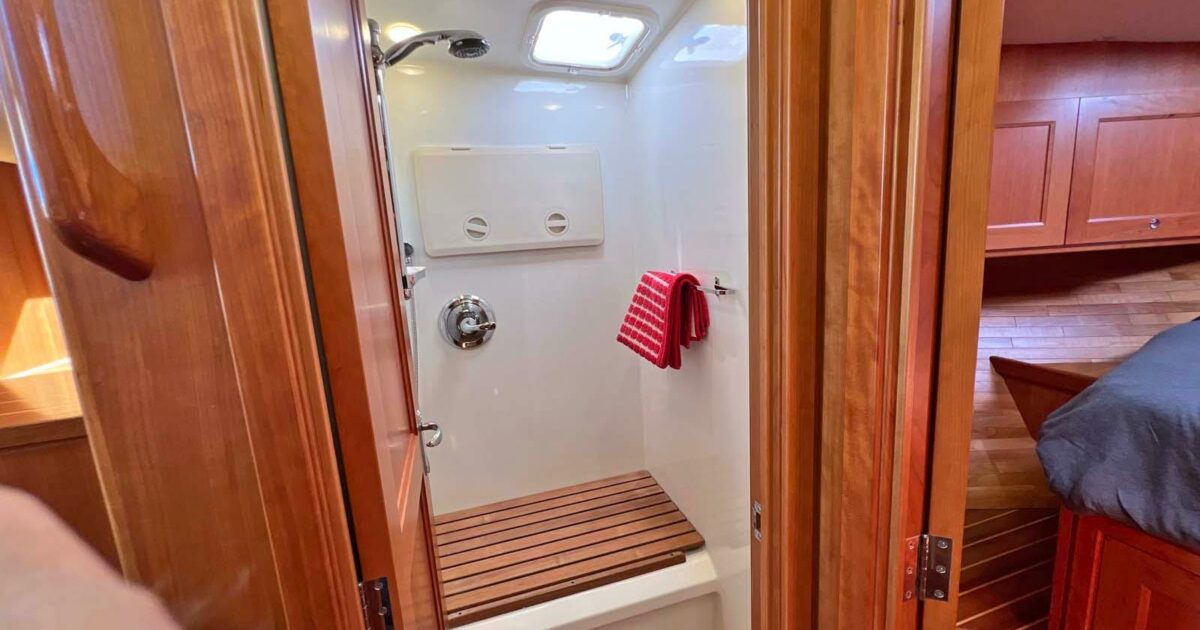

Forward Shower

Watertight shower stall with scat

Teak seat grating (removable)

Teak floor grating (removable)

Wall mounted mixing valve and shower head

Towel (dry) locker

Towel bar

Shower sump discharge pump

Ceiling light (waterproof)

Overhead deck hatch with screen



9

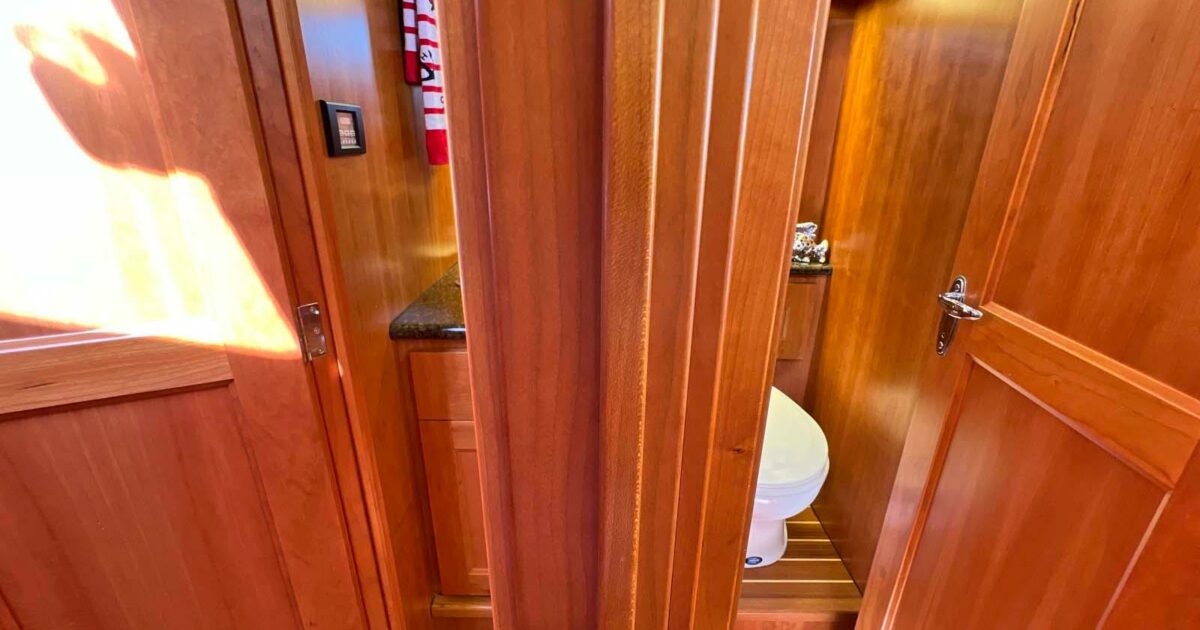

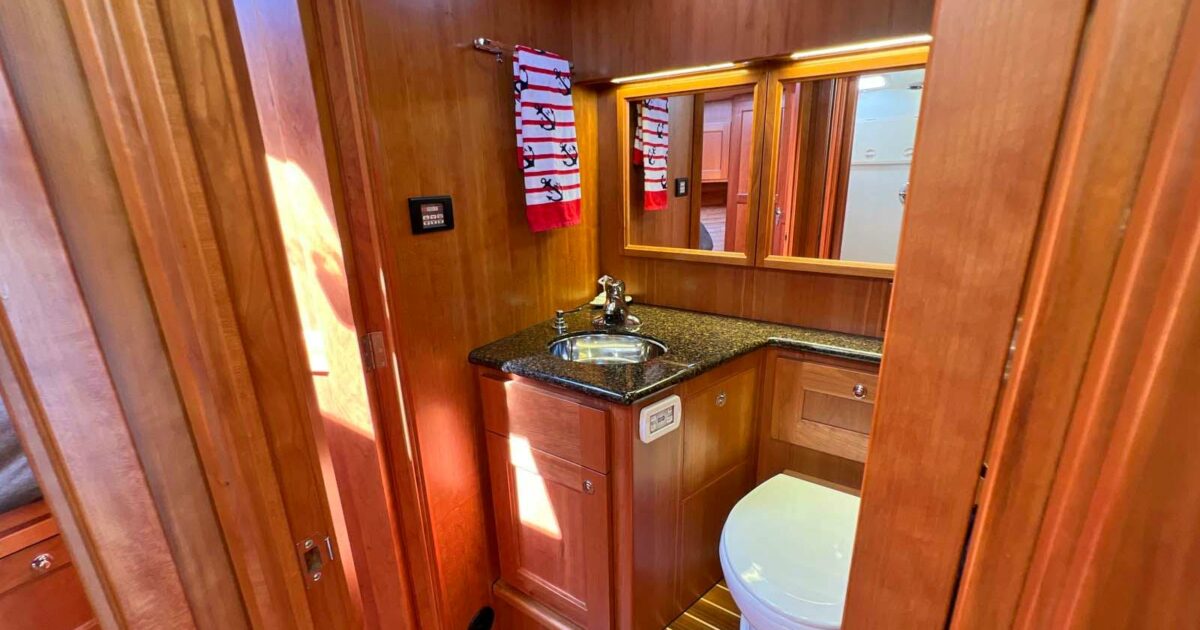

Day Head (no shower)

Compartment finished in wood with teak & holly

flooring, wood window returns, valances and blinds

Vanity includes lower cabinet

Vanity drawers and mirrored upper medicine cabinet

Avonite8 countertop and backsplash

Vanity under mount sink

Vanity faucet and soap dispenser

Quiet flush toilet (full size)

AC outlet

Towel bar

Ceiling light



10

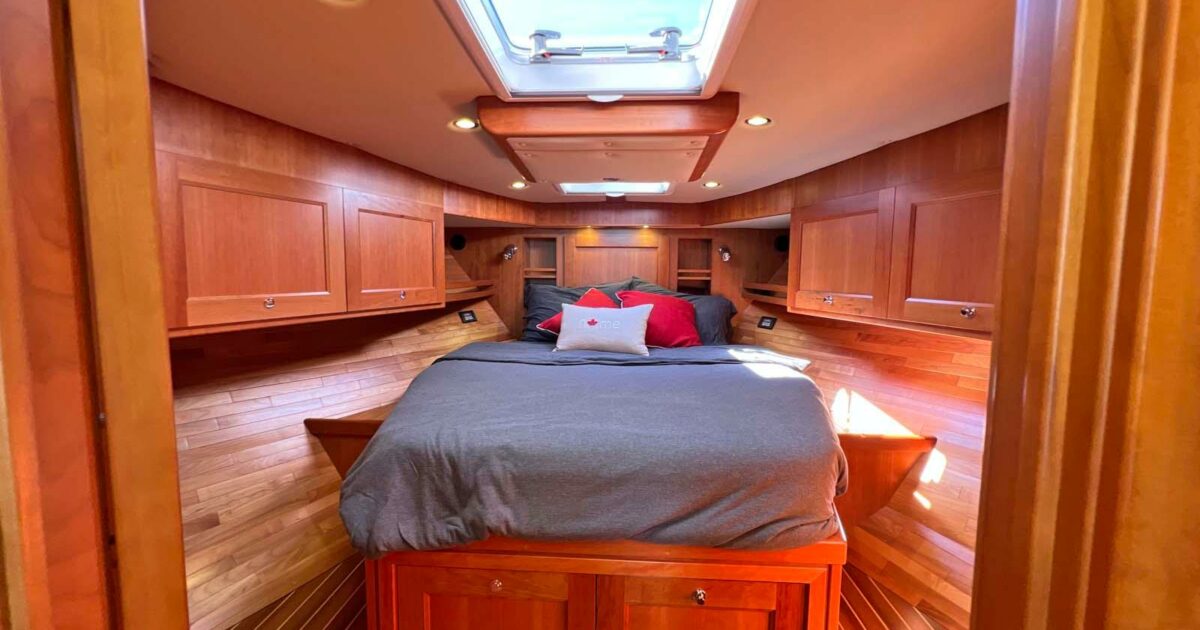

Master Stateroom

Teak & Holly flooring

Island gucen berth with 6'* mattress

Step platforms on either side of berth for easy access

Port side full beight hanging locker with shelves

Starboard full height locker

Drawers (4) under foot of berth

Upper side cabinets/lockers

Hull sides lined with cherry planking (2 ¼*)

19" LG8 LCD TV/DVD (retractable from wall)

Two 20" deck hatches with screen/shade

Soft Touch ceiling panels with foam backing

Stainless steel (brushed) recessed ceiling lights on

dimmer switchins

Two halogen reading lights

Low level LED lighting mounted under cabinet kicks



11

Guest/Aft Stateroom

Teak & Holly flooring

Ousen berth with 6 mattress

Locker with storage and washer dryer location

Bookshelf with locker doors

Stateroom finished in Cherry

19" LG8 LCD TV/DVD (wall mounted)

Soft Touch ceiling panels with foam backing

Deliveries

Page 3 of 5

Stainless steel (brushed) recessed ceiling lights on

dimmer switching

Two halogen reading lights



12

Main helm console

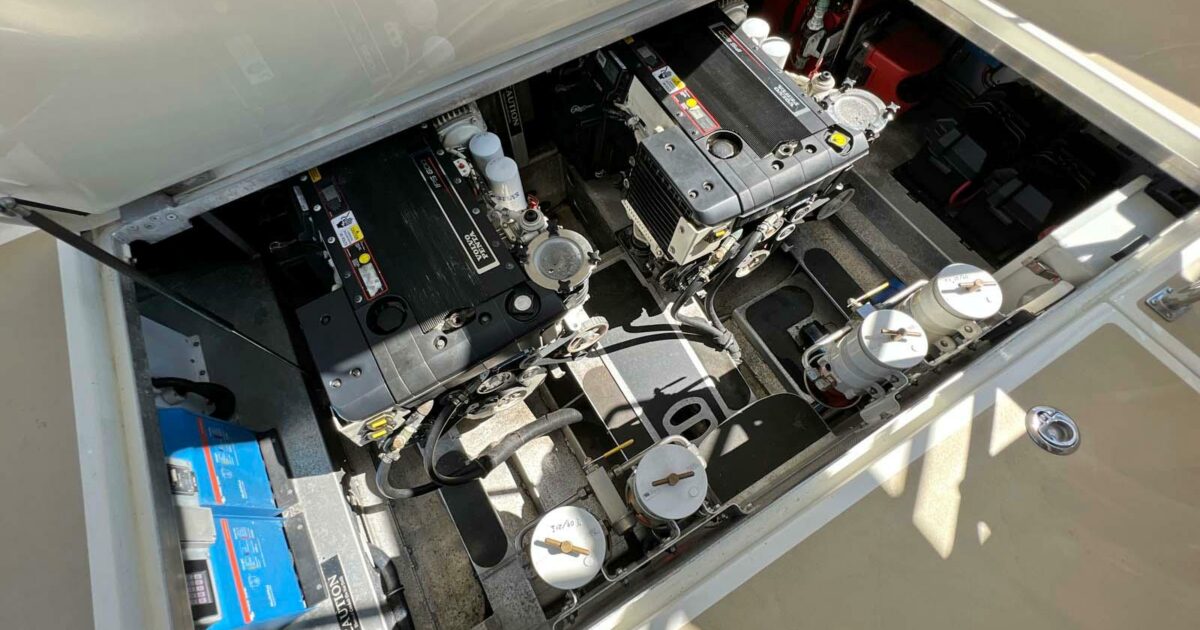

14 Machinery & systems

ENE

Soundown3 engine room insulation

Air intake and ambient air venting and ducting

Splendide1 washer/dryer (vented)

leemaker mounted under cockpit control console



13

Navigation electronies

Four Raymarine0 E140W displays

Raymarine 24" Radome. 48 NM radar

Raymarine GSM300 Sounder Module

Two Raystar GPS sensor

(2) Airmar® thru hull transducers

Raymarine® autopilot

(2) Tcome 604 VHF radio with Morad® antenna



14

Machinery & systems

Northern Light® 6KW generator

Centek8 waterlift & water/gas separator mufflers

US Marine Watermaker 1200 GPD water maker

Aluminum fuel tank with electric sender

Stainless steel water tank with electric sender

Plastic waste tank with electric sender

Racon® FG800 (dual) fuel/water filters

Stainless steel exhaust fitting

Manual bilge pump

2 X Z4A hull zine anodes

Soundown? engine room insulation

Air intake and ambient air venting and ducting

Splendide7 washer/dryer (vented)

Icemaker mounted under cockpit control console



15

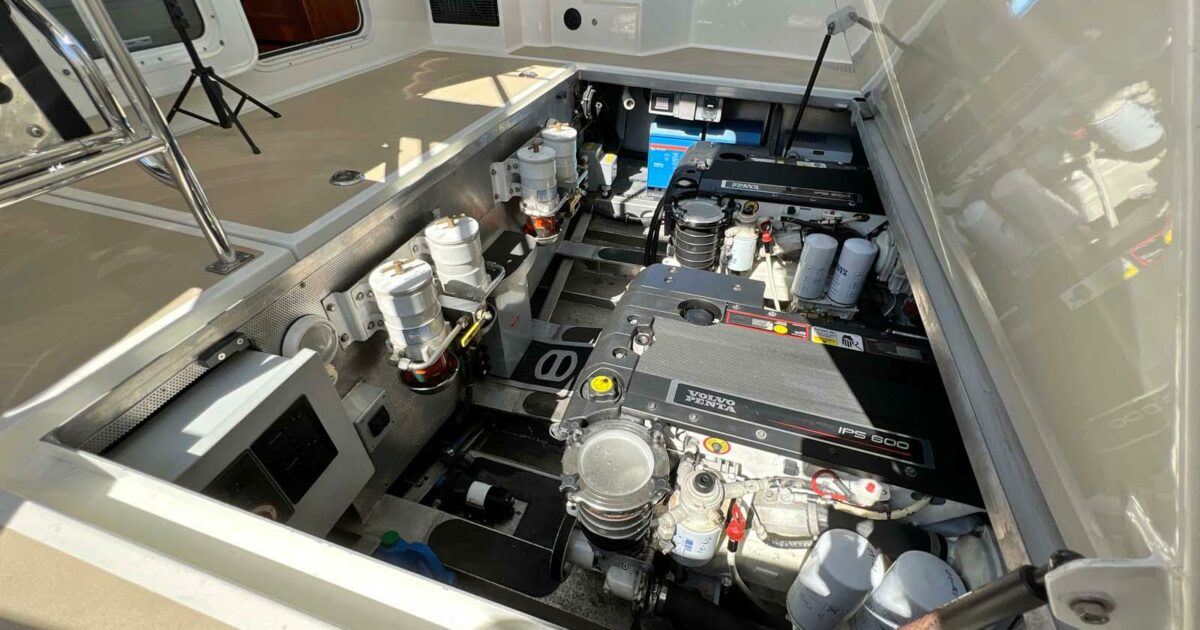

Propulsion

'Two Volvo0® IPS600 (D6-435 diesel engines)

3 station joystick control

Dynamic Positioning System

Slow Spced Trolling

Engine spare parts kit



16

Electrical equipment

Genasun®@ Lithium batteries (12V @ 720AH - House)

2 X Northstar® Merdian AGM 31 scries engine start

E-Plex network switching & monitoring

(2) Vietron Multi-Plus 3K W Inverter/100A Charger

Engine Start Battery Charger

Galvanic transformer

AC outlets thru out the boat

Battery coupling system

Water heater (AC & hydronic heating)

3 X windshield wipers with SS arms and blades

Windshield washer system

Electric air horn

Remote scarchlight

Navigation lights

Humphree Interceptor® Trim System with Active

Bilge pumps (4 X 2000 gph, auto/man)

High water bilge alarms

High temperature alanns in engine room

Fire suppression system (auto/man) in engine room

Headhunter domestic water pump

Sirius satellite radio (wired into Bose)

S2 LED recessed ceiling lights on dimmers (interior)

Florescent lights in storagc compartment under salon

BcamR built-in vacuum system



17

Climate control

Kabola7 hydronic heating system (5 zones)

(System heats domestic water and provides

defrost heat to windshields)

Dometic Air Conditioning (2 zoncs)

Tool kit & spares kit

Carbon monoxide/smoke detectors

Propane pancl & alarm



18

Miscellaneous

Six boat fenders with sock and lines

Six mooring lines

Life ring & throwing line

Teak flag staff and holder

Owners Manual

Navioniesk electronic chart





OPTIONS INCLUDED

1. Steclhead Whisper Crane with 600 lbs capacity. Cabin top mounted with dinghy caulks and tie downs.

2. Caribe 11* 6" Dinghy with center console, Yamaha, Rigged with steering, battery.

Fuel tank hold down, bilge pump, navigation light. (1) downrigger power point, Dinghy Cover (Sunbrella)

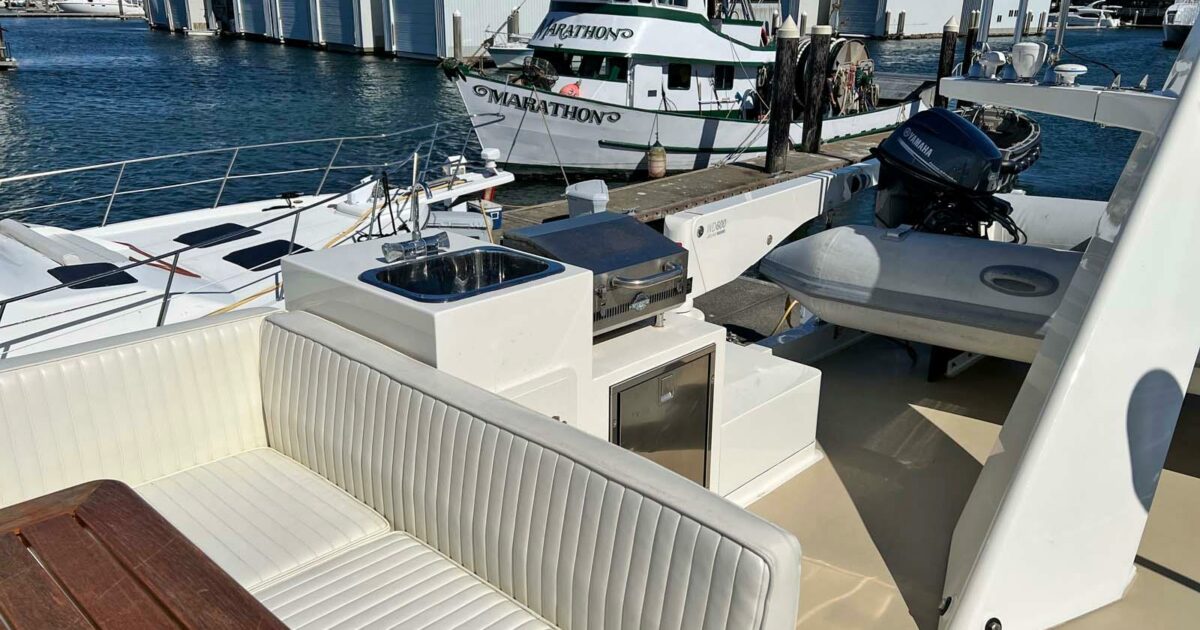

3. Flybridge Summer Kitchen with sink (hot/cold), fridge, BBQ and storage bin.

4. KVH HD7 Satellite TV Antenna

5. Port Side Laptop Docking Station with separate GPS Sensor. AC & DC outlets.

6. Cooler in storage space beneath cabin floor

7. com Command Mic and interface it with Flybridge VHF radio for Intercom.

8. Cherry framed mirror in master stateroom (behind companionway door.

9. Cherry framed mirror in Head on wall between Head and master Stateroom.

10. (2) Downrigger Power Points in cockpit

11. Stainless Steel rod mounted at aft end (lower side) of hardtop extension with (6)

SS rod holders.

12. Fish Cleaning Tray (SS/Starboard) with bracket/platform for attachment to

swim Platfonn Staple Rails

13. Install cockpit canvass lower mounting track (for future canvass enclosure).

14. Full width insulated fish boxes with drains bencath cockpit bench seat.

15. "Fuel Spill Guard" system.

16. Raymarine A70D chartplotter/fish finder in dinghy with built-in charts

& transom mount transducer.

19. Flir M626 Night Vision camera with two station controls.

20. KVH FB250 Voicc/Data Satellite Antenna (on stainless pedestal mount)

21. Upgrade to stainless steel Delta 55lb anchor
