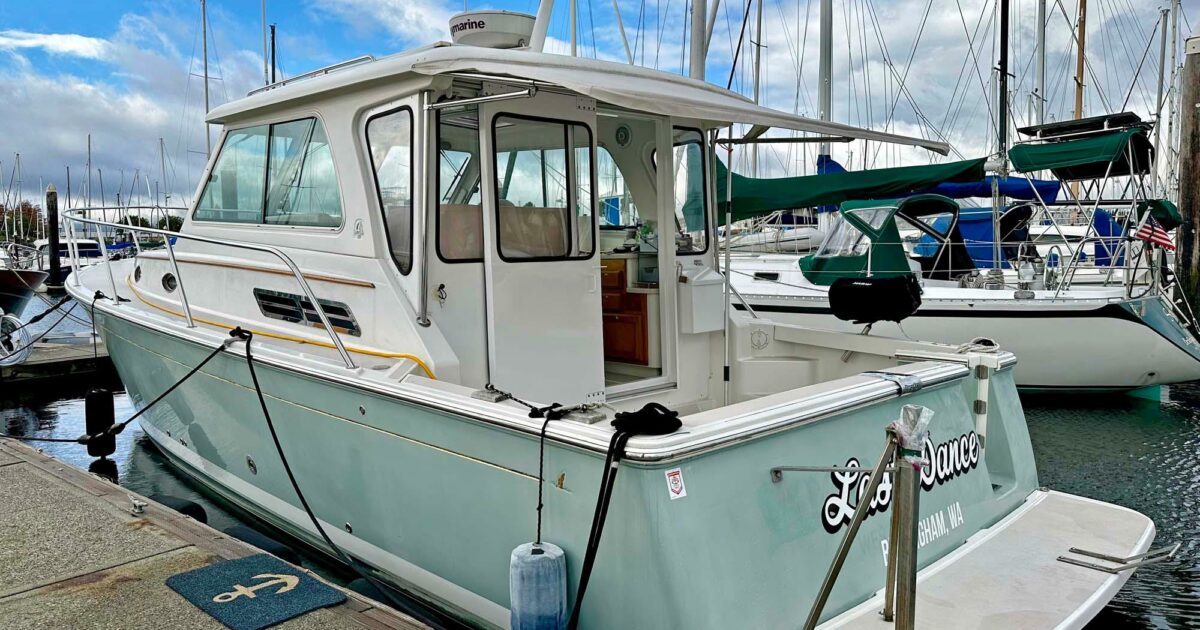

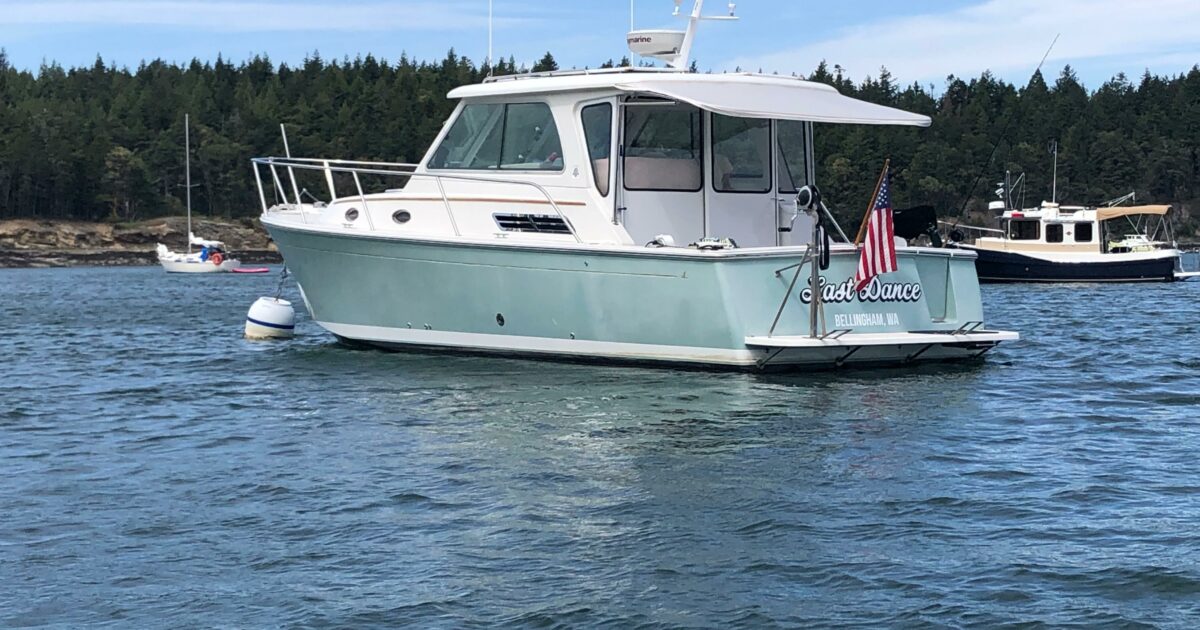

2008 Back Cove 33

Additional Information

• ENGINES: 1
• STYLE: Inboard
• MAKE: Volvo Penta
• FUEL: Diesel

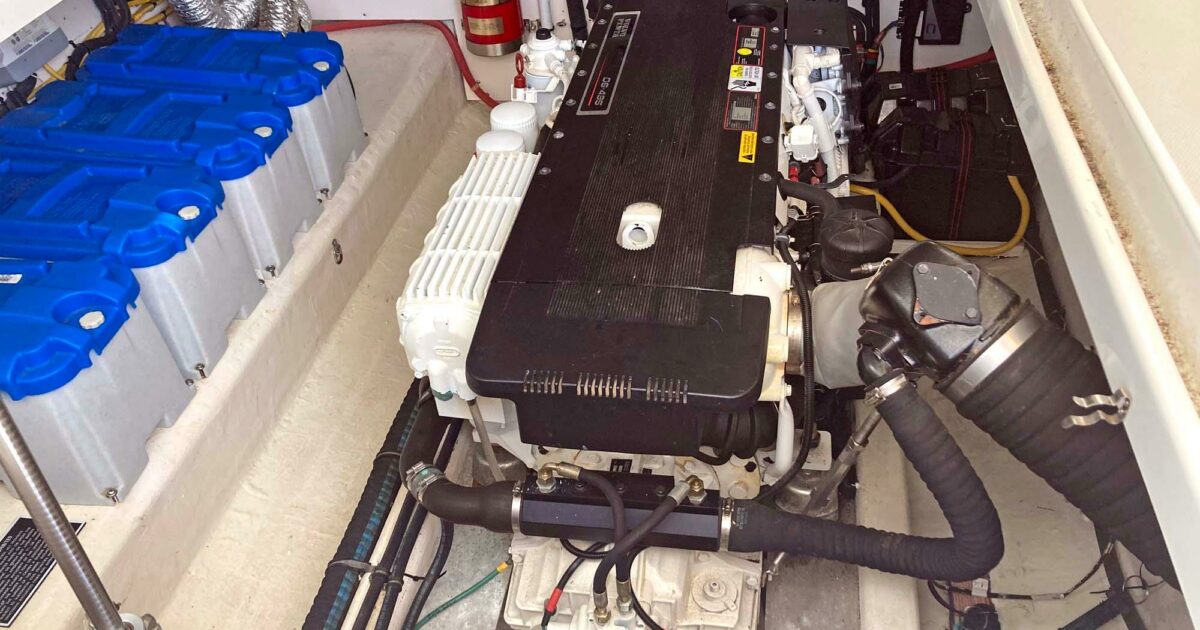

• MODEL: D6-435
• HP: 435
• HOURS: 880
• COOLING: Closed freshwater cooling with heat exchanger
• TRANSMISSION: Volvo Penta
• RATIO: 2.5:1
• EXHAUST: Wet through a FRP muffler
• STEERING: Hydraulic
• PROPELLER: Four blade bronze 24x28
• STRUT: Cast bronze
• SHAFT: 2" stainless-steel
• CUTLASS BEARING: Good condition
• RUDDER: Cast bronze spade type
• BILGE PUMPS: 12 Volt DC with automatic and manual function
• SHOWER PUMP: Dedicated pump is installed
• OIL CHANGE PUMP: Reverso
• BLOWER: 12 Volt DC
• BELOW WATER THROUGH HULL VALVES: Marlon ball valves
• ABOVE WATER THROUGH HULL FITTINGS: Bronze
• THRUSTERS: Side Power bow and stern
• TRIM TABS: Lectrotab
• HEATER: Webesto Thermal 90ST hot water cabin heater

ELECTRICAL

• SHIP'S SYSTEM VOLTAGE: 12 Volt DC
• WIRING: Original, copper stranded, well secured, OK
• OVERCURRENT PROTECTION / PANEL: Circuit breakers / In the salon
• BATTERIES: 5x 12 Volt DC
• SIZE: Four 8D; one Group 27
• LOCATION: 8D in the engine compartment; Group 27 below the aft cockpit
• SECURED: 8D boxed, covered and strapped in acid proof boxes; Group 27 strapped in place and not provided with positive terminal protection
• BATTERY CHARGER: Pro Nautic 40 AMP, engine alternator and Solar Panels
• INVERTER: Xantrax 1800 Watt
• SHORE SYSTEM VOLTAGE: 120 Volt AC
• AMPERAGE: 30
• WIRING: Original, copper stranded, well secured, OK
• OVERCURRENT PROTECTION / PANEL: Circuit breakers / In the salon
• BACK OF PANEL COVERED OR PROTECTED: Yes
• POLARITY ALARM: Yes
• SHORE INLET: Marinco twist lock in the cockpit
• OVER CURRENT PROTECTION WITHIN 10° OF SHORE INLET: Yes
• GFCI PROTECTION: Yes
• THROUGH HULL BONDING: Yes
• GALVANIC ISOLATOR INSTALLED AND TESTED: Yes

TANKS

• FUEL TANKS: 1
• CAPACITY: 185 gallons / LOCATION: Below the cockpit
• MATERIAL: Aluminum / FILL / VENT LINES: U.S. Coast Guard approved Type A-II hose
• SUPPLY /RETURN LINES: U.S. Coast Guard approved Type A-I hose
• GROUND WIRES INSTALLED: Yes
• VALVES: Ball valve on the supply
• FILTERS: Racor fuel water separator # WATER TANKS: One
• CAPACITY: 60 gallons
• LOCATION: Engine compartment starboard side
• MATERIAL: Plastic
• HOT WATER HEATER: Seaward
• CAPACITY: 10 gallons
• LOCATION: Engine compartment starboard side
• POWER: 120 Volt AC and engine heat exchanger
• DOMESTIC GAS TANKS: 1
• FUEL: LPG
• CAPACITY: 10 lbs x 2
• MATERIAL: Steel
• LOCATION: Below the companion seat on the helm deck in a dedicated locker
• LINES: LPG hose
• VENTING: Directly overboard
• SHUT OFF VALVE: Manually operated valve on the tank and electrically operated solenoid valve
• SAFETY SIGN IN PLACE: Yes
• PSIG INSTALLED: Yes

GALLEY FURNISHINGS

• STOVE: Princess / BURNERS: 2x
• FUEL: LPG
• REFRIGERATION: 2x Isotherm AC/DC dual voltage
• MICROWAVE: Contour
• WATER SYSTEM: Pressurized hot and cold water

MARINE SANITATION DEVICES

• HEADS: 1
• TYPE: Jabsco Electric
• MSD TYPE: III
• HOLDING TANKS: 1
• CAPACITY: 30 gallons
• LOCATION: In the engine compartment starboard side
• CONDITION OF HOSES: Good
• MACERATOR PUMP: Yes
• TYPES OF DISCHARGE: Deck pump out of the holding tank or the macerator can discharge the holding tank overboard

NAVIGATION / ELECTRONICS / OTHER GEAR

• COMPASS: Ritchie

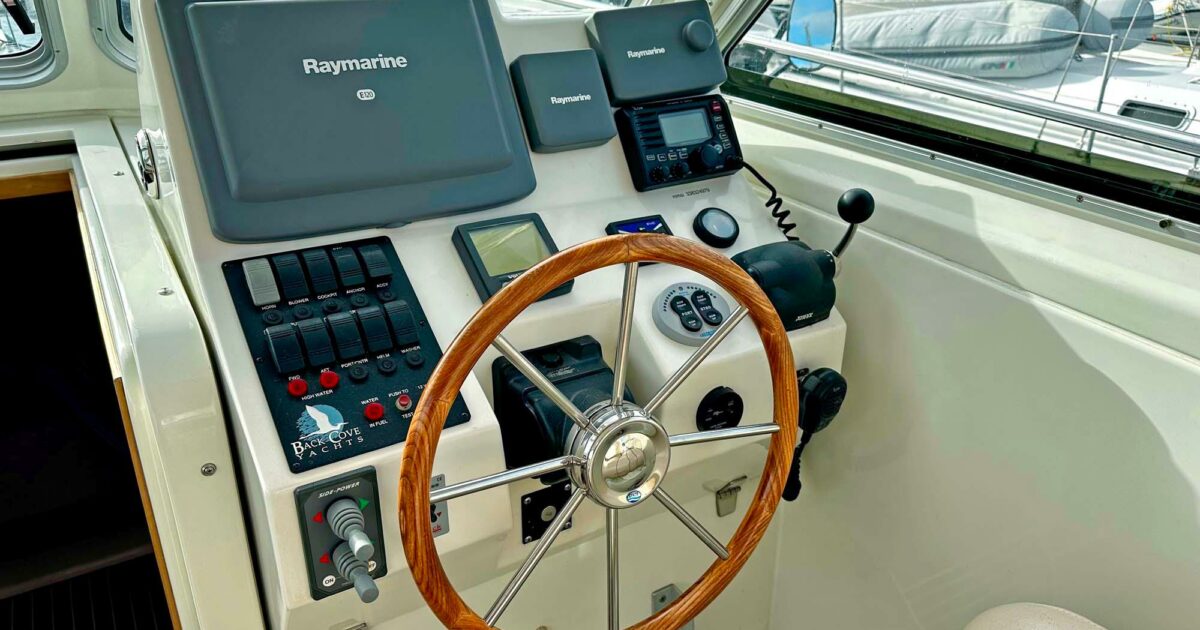

• RADAR / GPS / CHART PLOTTER: Raymarine E120
• AUTOPILOT: Raymarine ST6002
• VHF RADIOS: Icom IC-M 504
• DEPTH FINDER: Raymarine ST60
• AM/FM: Clarion with CD player

GROUND TACKLE

• ANCHOR & RODE: Delta plow with 150 ft of  chain and 100 ft of nylon rode
• WINDLASS: Quick
• POWER: 12 Volt DC CONTROLS: Foot button on the foredeck and remote control at the helm
• WIRING AND CONNECTIONS: Al wires and connections that were able to be viewed were secure and in good condition.

SAFETY GEAR / REQUIRED EQUIPMENT

• PORTABLE FIRE EXTINGUISHERS: 1 / Type B-I / At the helm
• FIXED FIRE EXTINGUISHER: FE-241 / In the engine compartment
• PERSONAL FLOTATION DEVICES: Types II & III
• VISUAL DISTRESS SIGNALS: Orion flares
• HORN: 12 Volt
• OIL DISCHARGE PLAQUE: Yes
• CO MONITOR: Yes

Manufacturer Provided Description

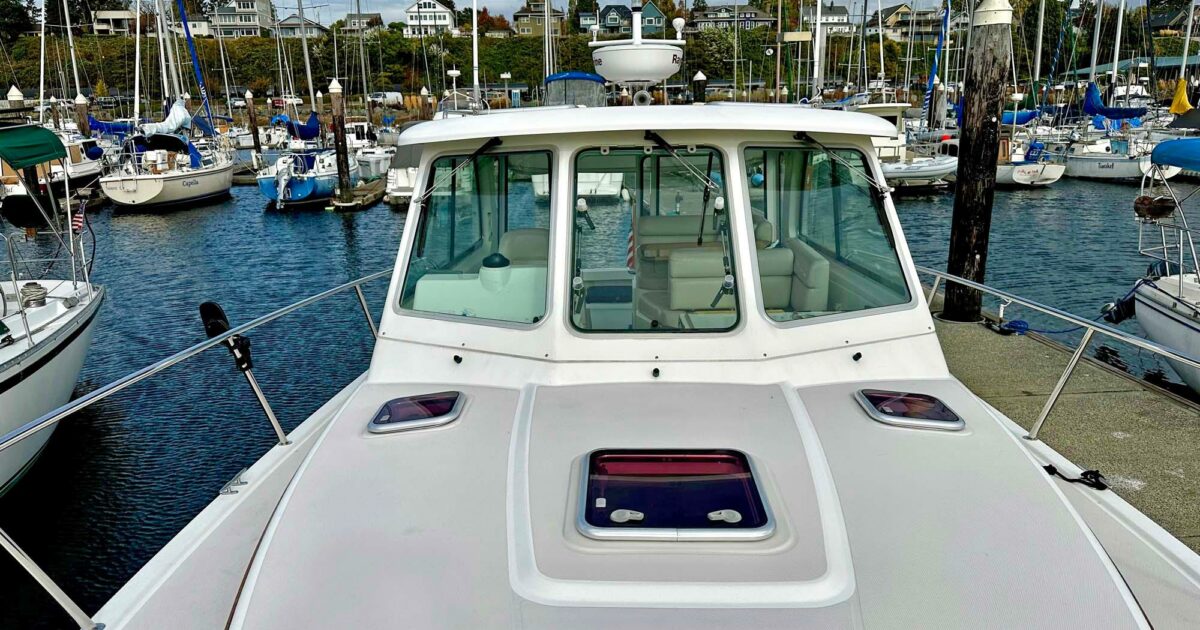

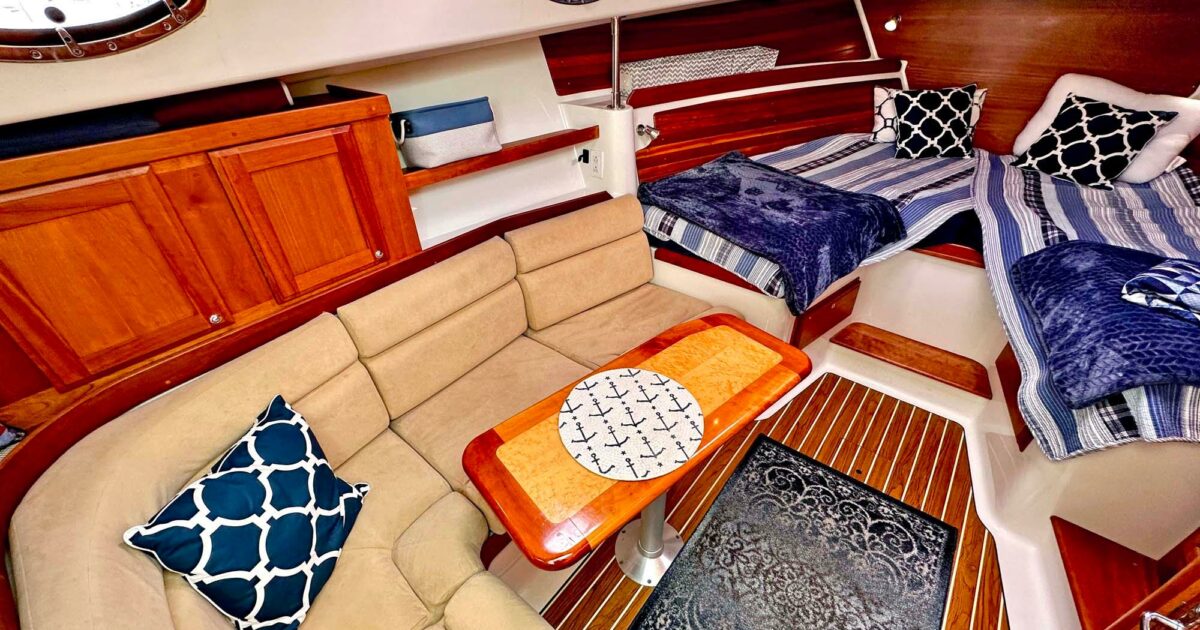

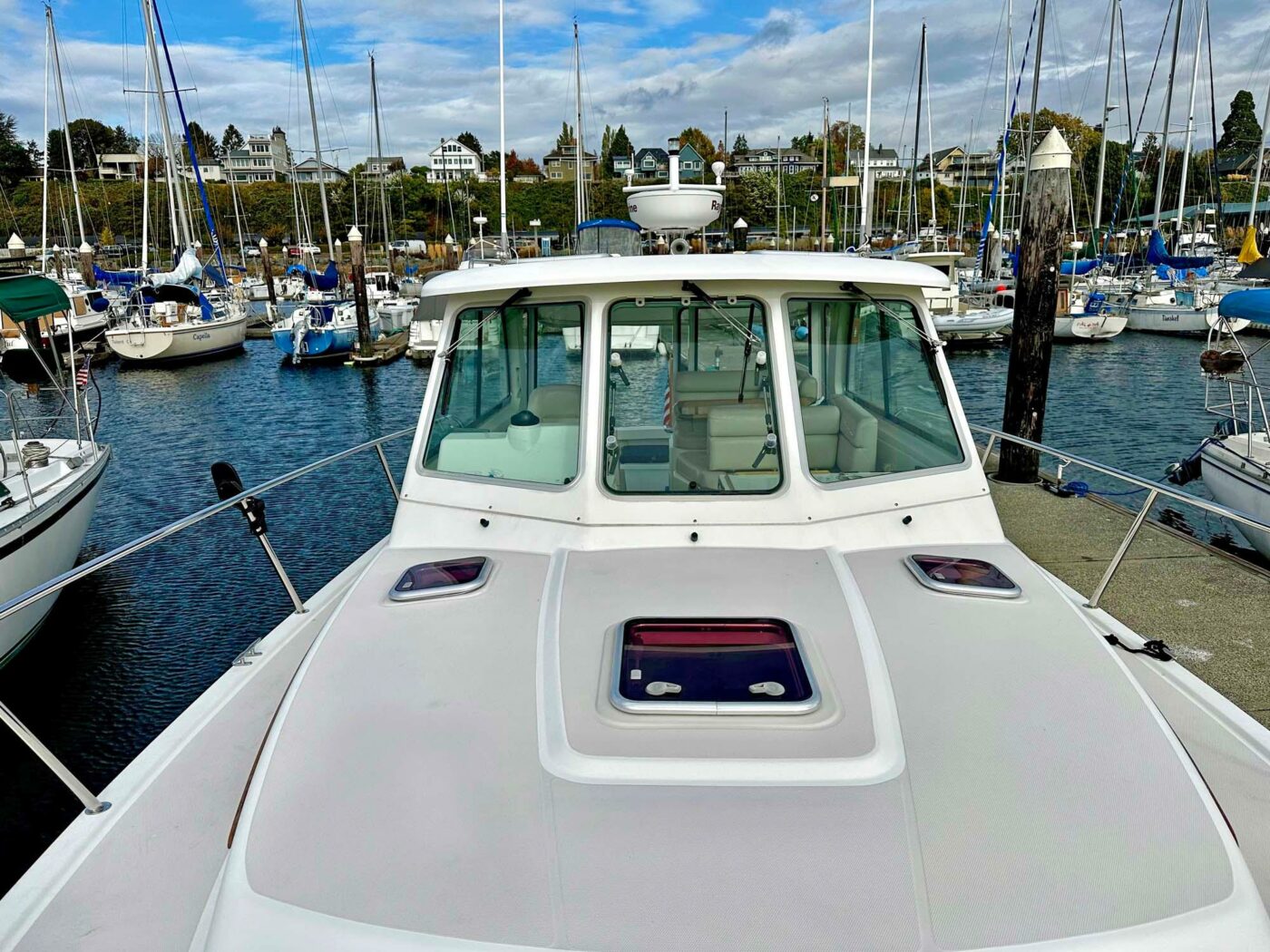

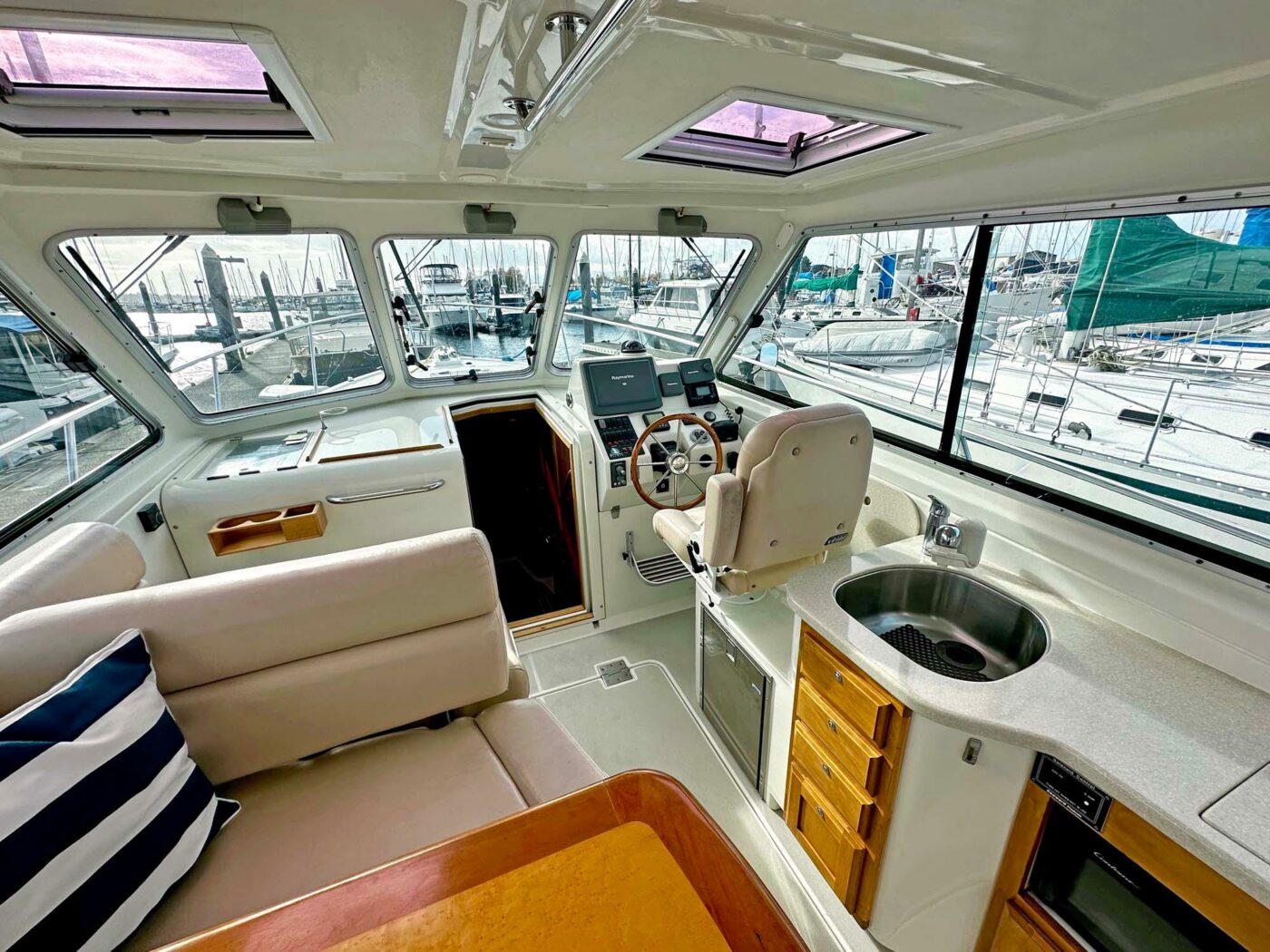

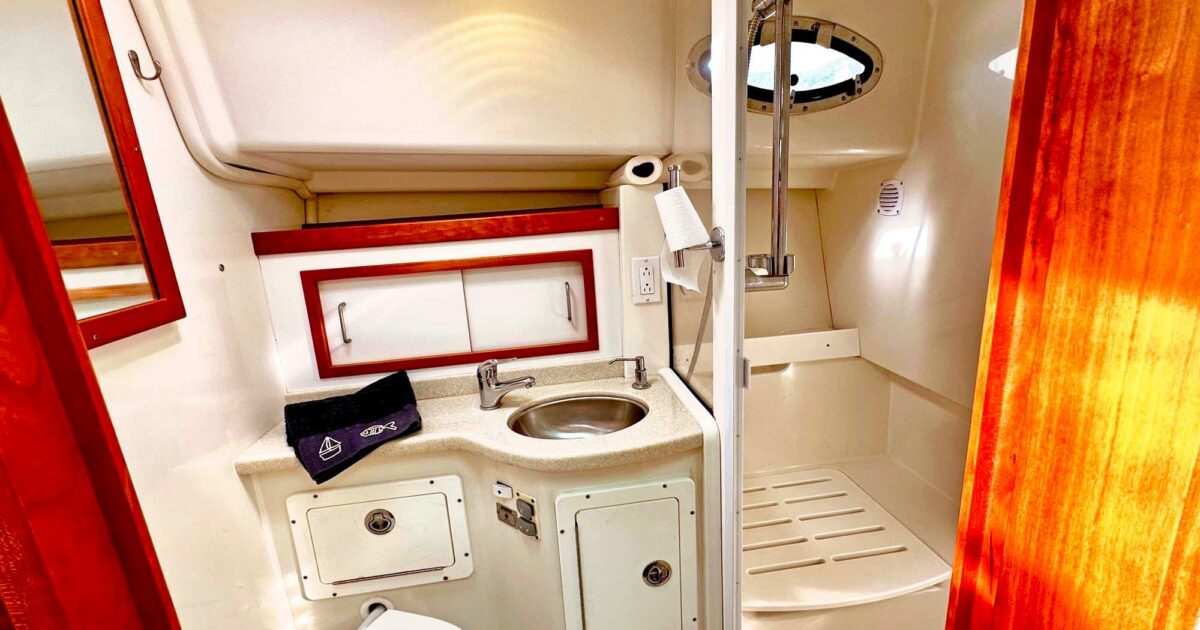

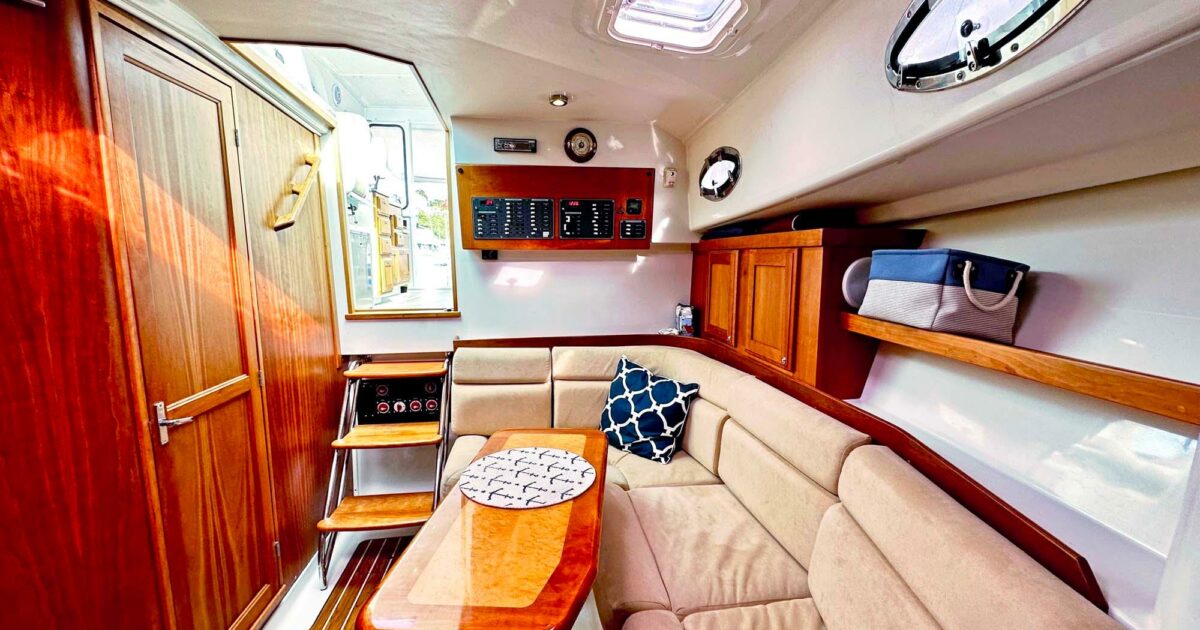

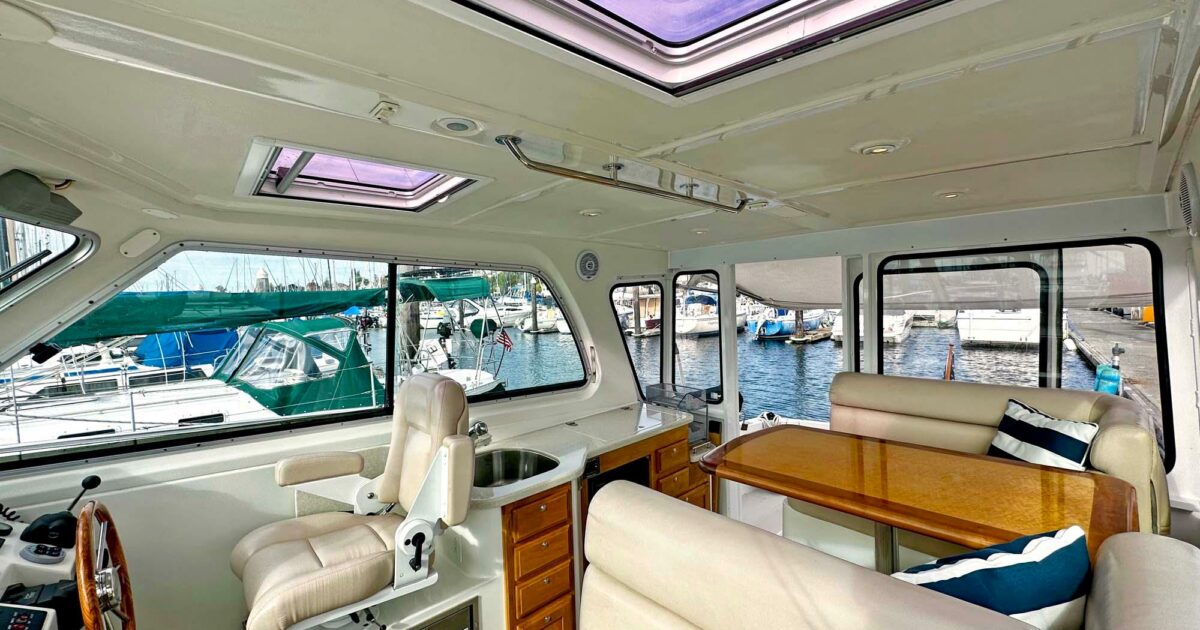

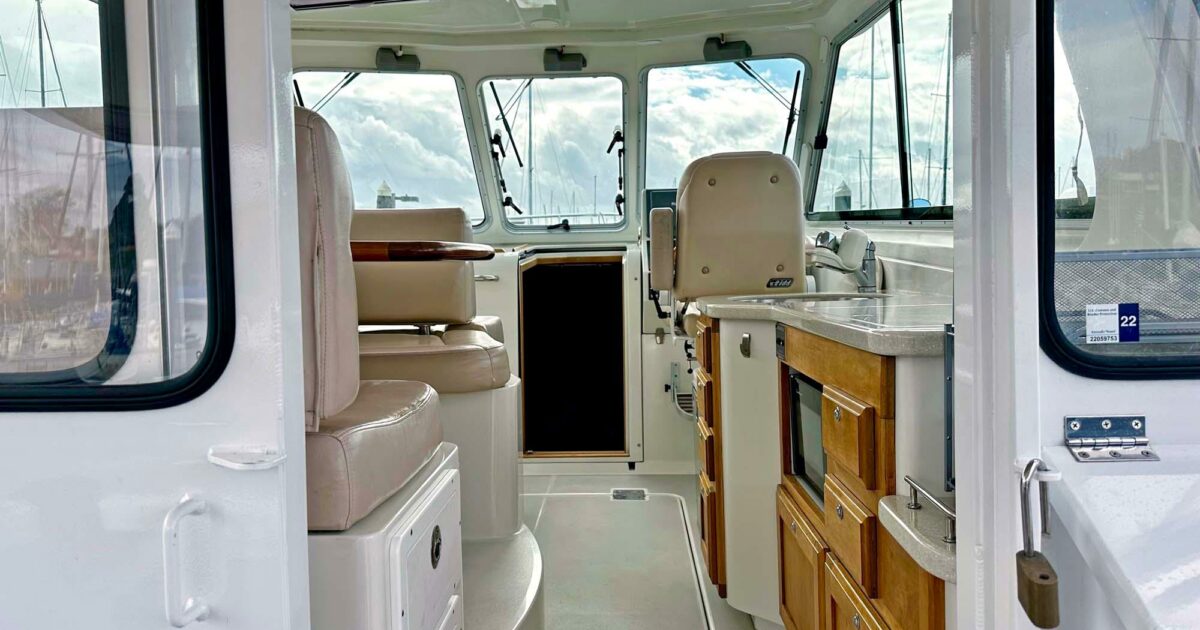

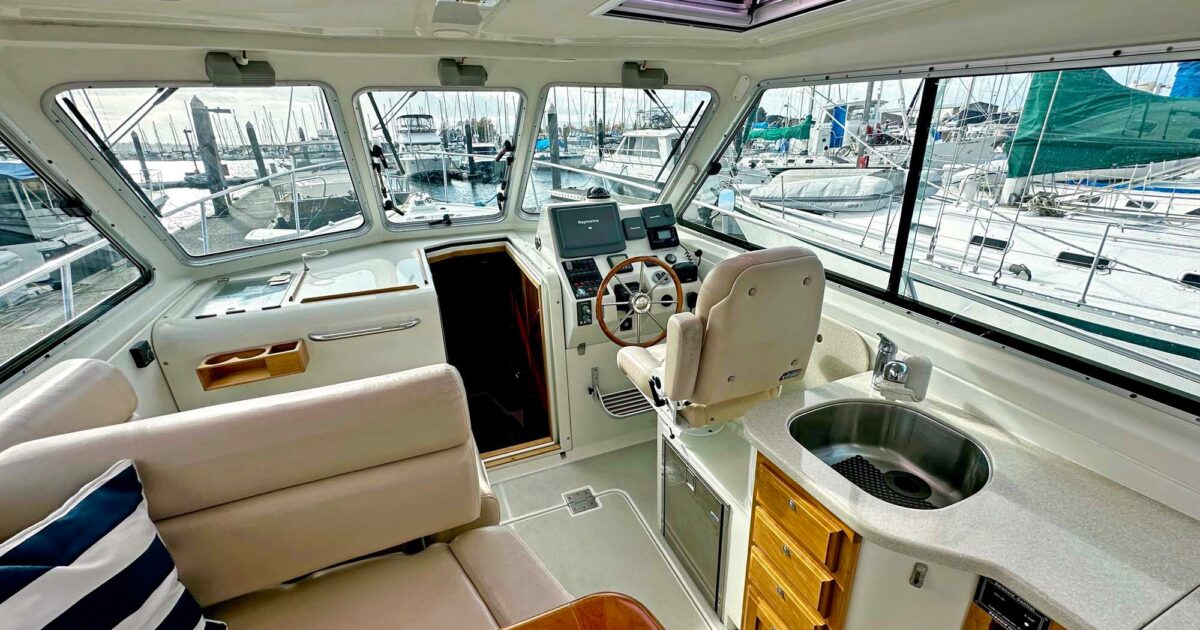

The Back Cove 33 is a yacht with the same simple features, usability, and maintenance that have built the popularity of the Back Cove brand. Below the deck is a large and comfortable vee-berth convertible L-settee with a beautifully inlaid salon table. To starboard, we created a large head with a separate stall shower. On the helm deck, a full galley stretches out aft of the helm seat and to port is a dinette where four adults can sit to enjoy a meal. The inlaid table is a fine example of the Maine boat builder's craftsmanship and tradition, which is evident throughout the Back Cove 33. Forward of the dinette, a double mate's seat is a comfortable perch for the navigator. The helm deck is airy and bright with overhead hatches, opening side windows, and a center-opening windshield. A Stidd helm chair provides comfort for the helmsman underway. In her cockpit, a large bench seat allows comfortable lounging while underway or when anchored in a peaceful cove. Engine access is extraordinary, as the helm deck, including the port side dinette, raises to expose the yacht's mechanical systems.
