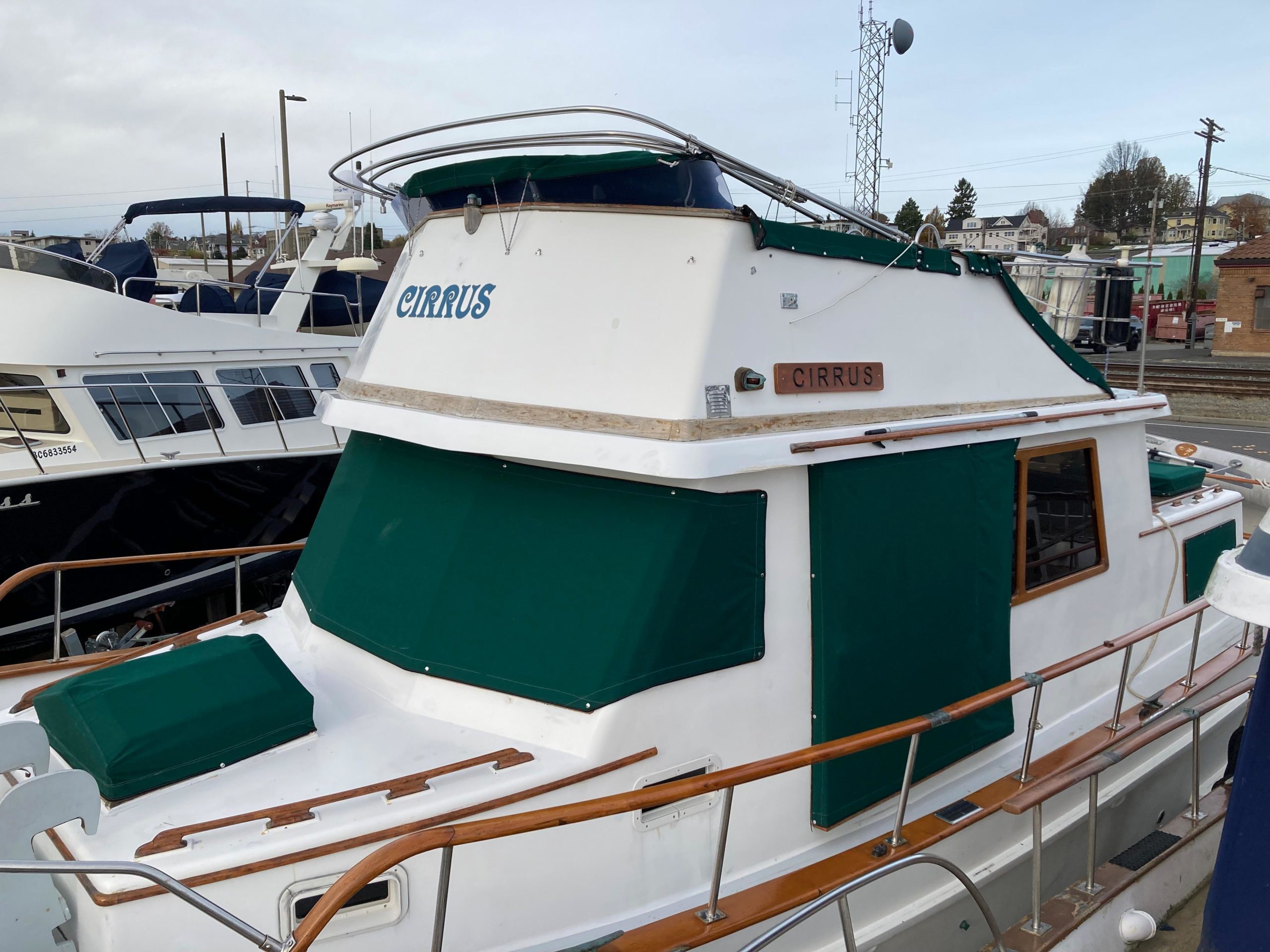

“1980 CHB Trawler w/ Available Boathouse”
This North Sea CHB Trawler is ready as a live-aboard or long distant cruiser for any couple. Extensive haul-out just completed. This vessel is equipped with well-proven mechanics that have just been completely gone through and are simple and easy to maintain. The 4000kw Northern Lights genset is a real plus. This boat really is just due for some cosmetic TLC and a bit of electronic up-grade. The CHB is a proven cruising boat with lots of years of reliability left in her.
Three different options available with this vessel…

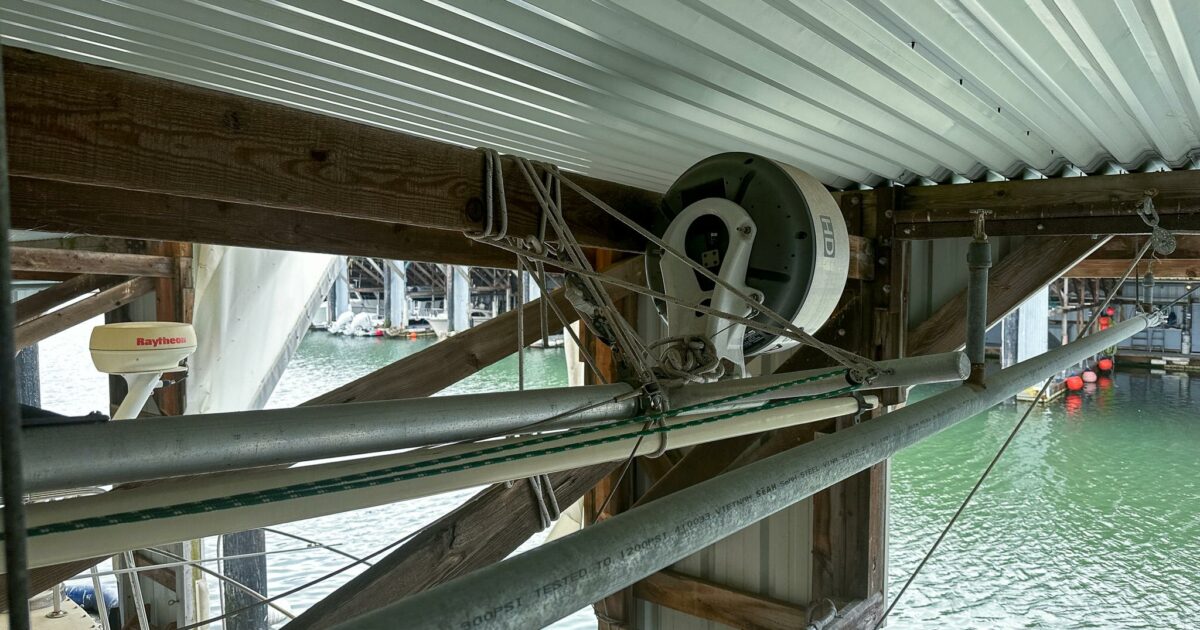

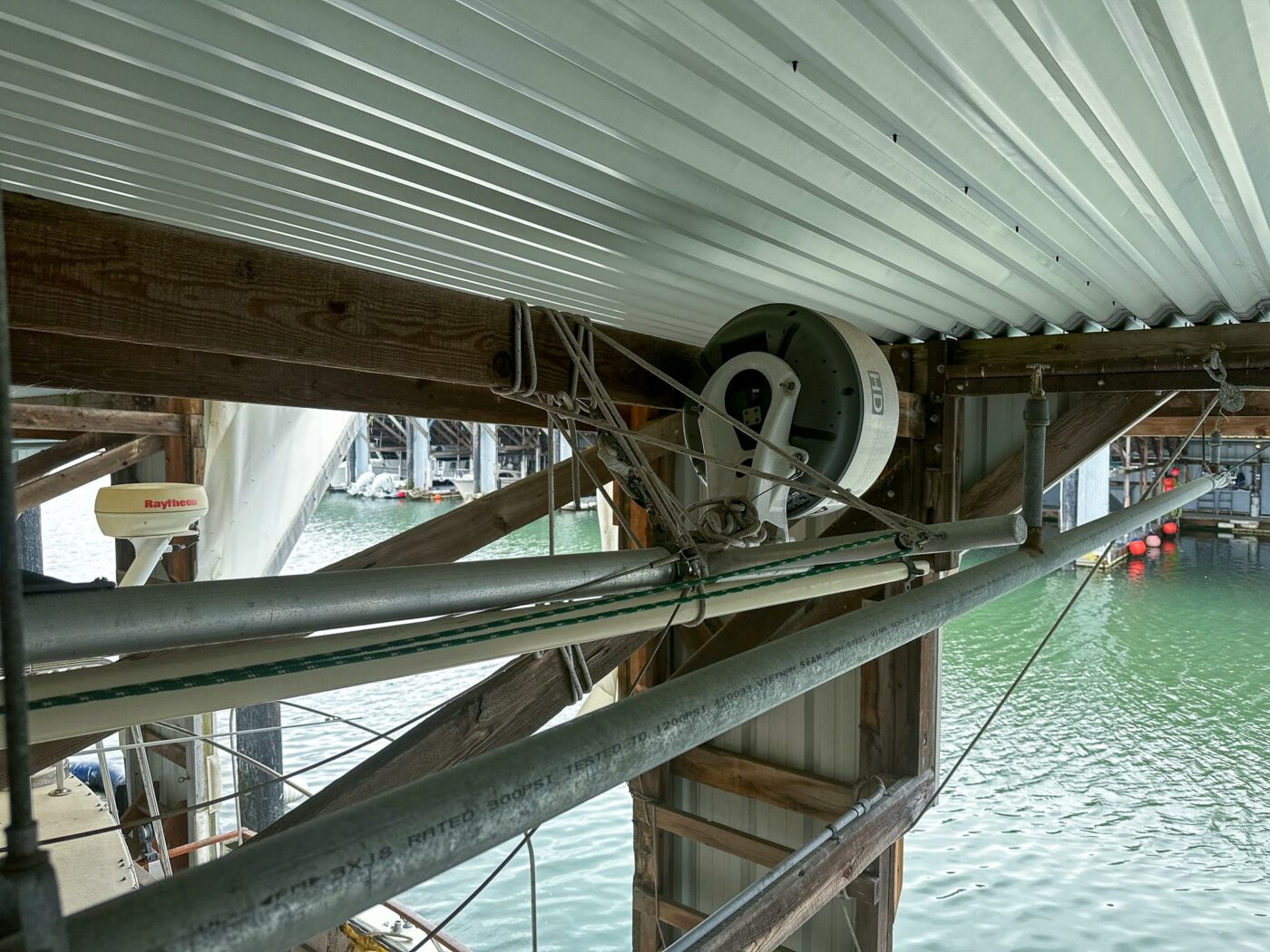

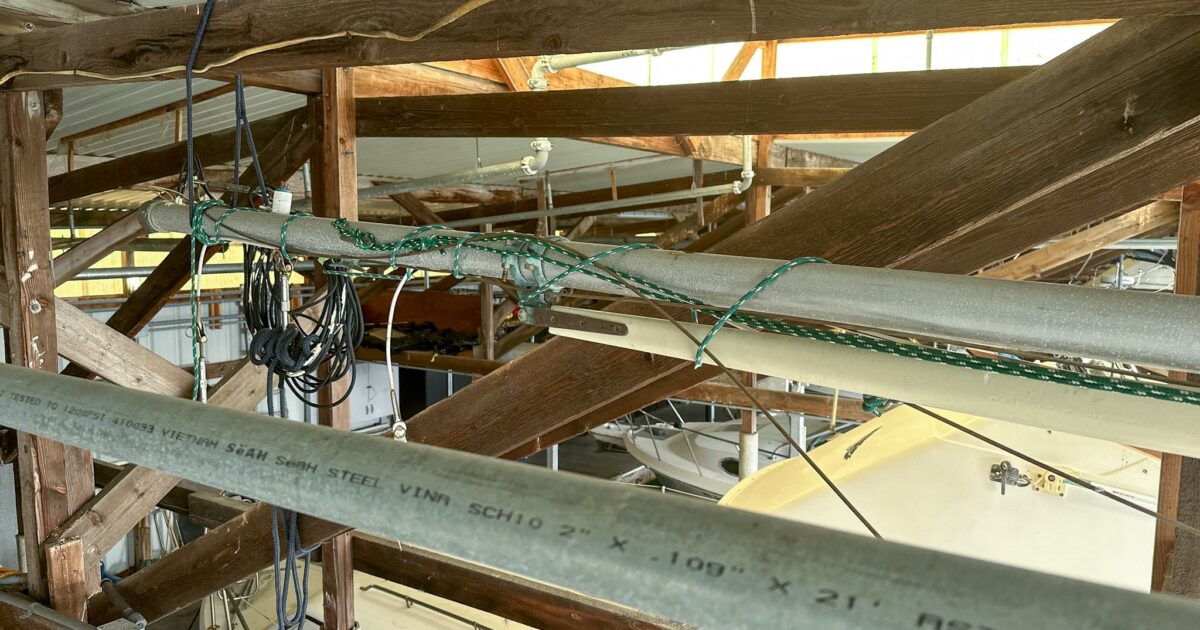

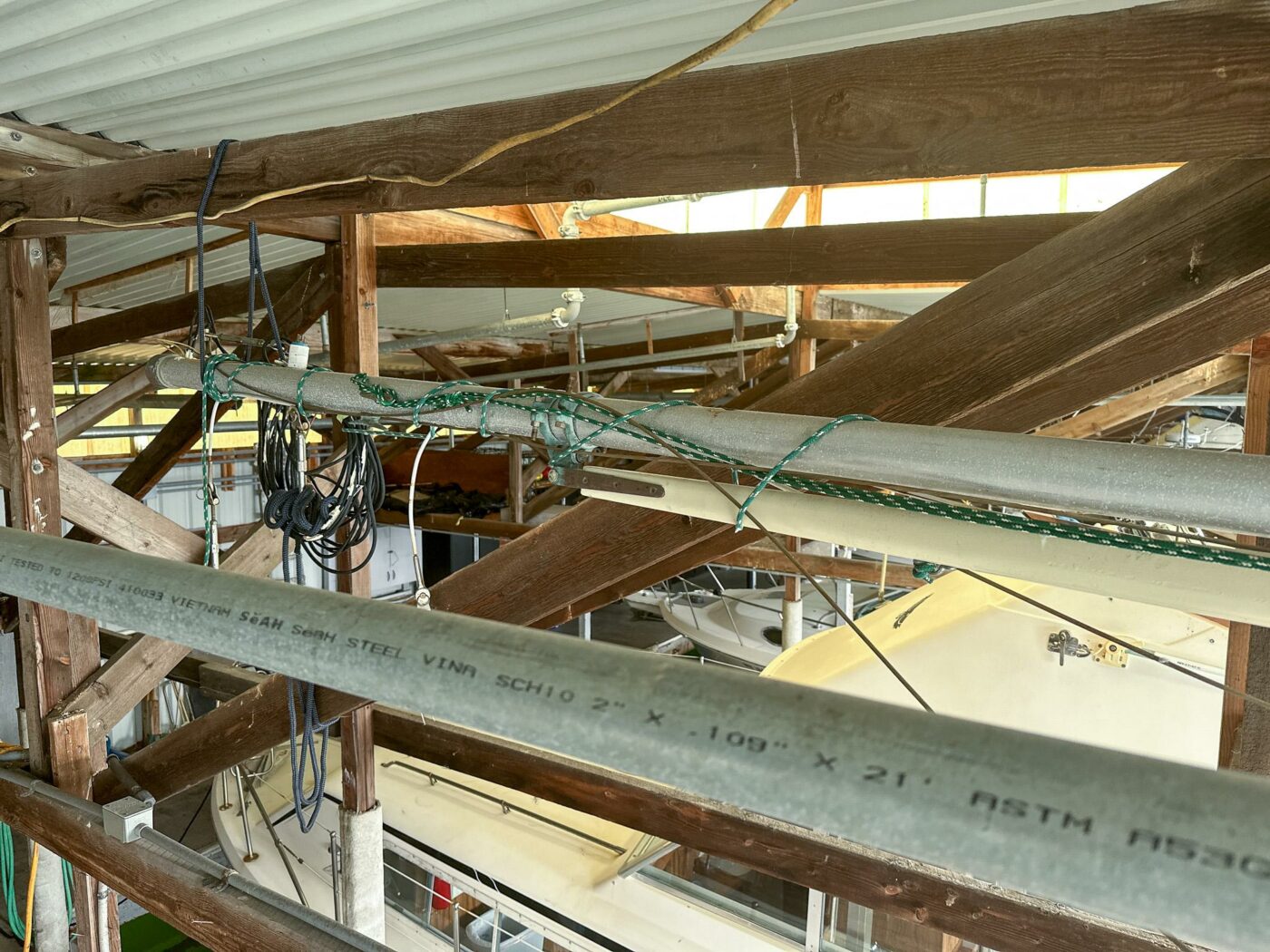

1) The boathouse being listed for $79,000. Owner will not sell boathouse separate from boat.
2) Boat and boathouse can be purchased as a package. Boat can be sold by new buyer after purchase if only the boathouse is wanted.
3) The boat is available separately if buyer doesn’t want the boat house.
BASIC SPECIFICATIONS HULL Designer: Unknown Builder: Unknown. HIN indicates Kadey Krogen Yachts. Built at: Taipei, Taiwan Year built: August 1980 Displacement: 18,000# Gross tonnage: 19 GRT Net tonnage: 15 NRT Length: 35ft. overall Beam: 12ft. Draft: 5ft. Admeasurements-Length: 34.3 Breadth: 12.0 Depth: 7.0 Cruise speed: 6.5 knots Maximum speed: 9 knots (observed)
Framing: Plywood bulkheads and platforms, fiberglass liner transverse members, fiberglass stringers Beams: Plywood bulkheads Plating: Fiberglass laminate Decks: Fiberglass laminate, cored with teak overlay Superstructure: Fiberglass laminate, cored Fasteners: Fiberglass laminate Keel: Molded box, full displacement RUDDER Blade rudder of bronze

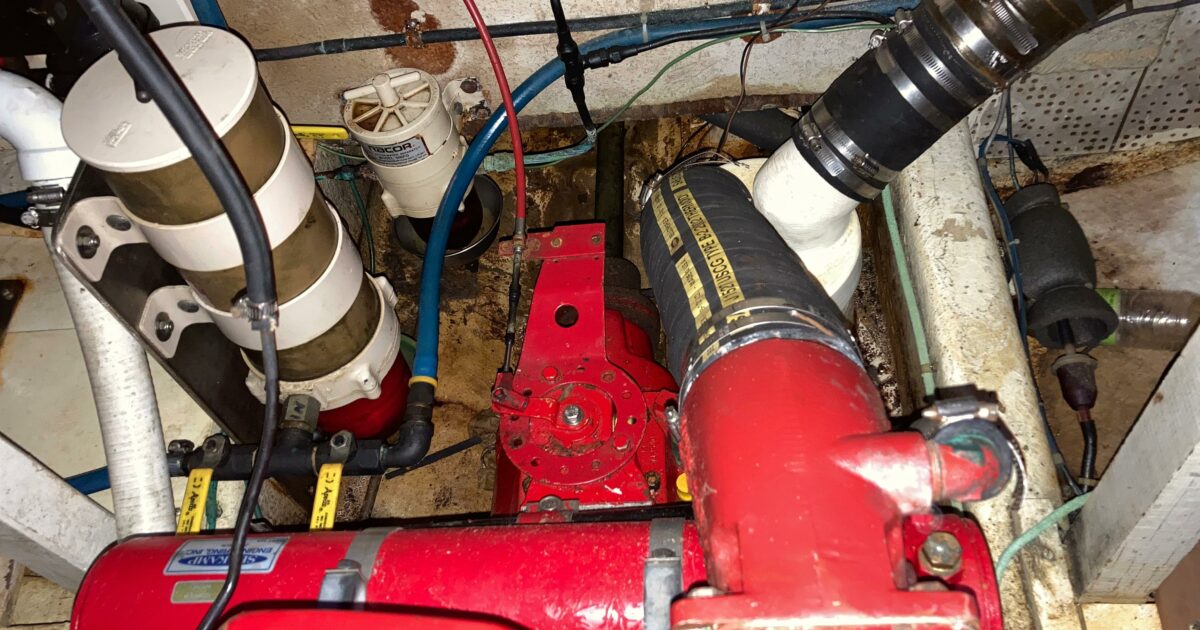

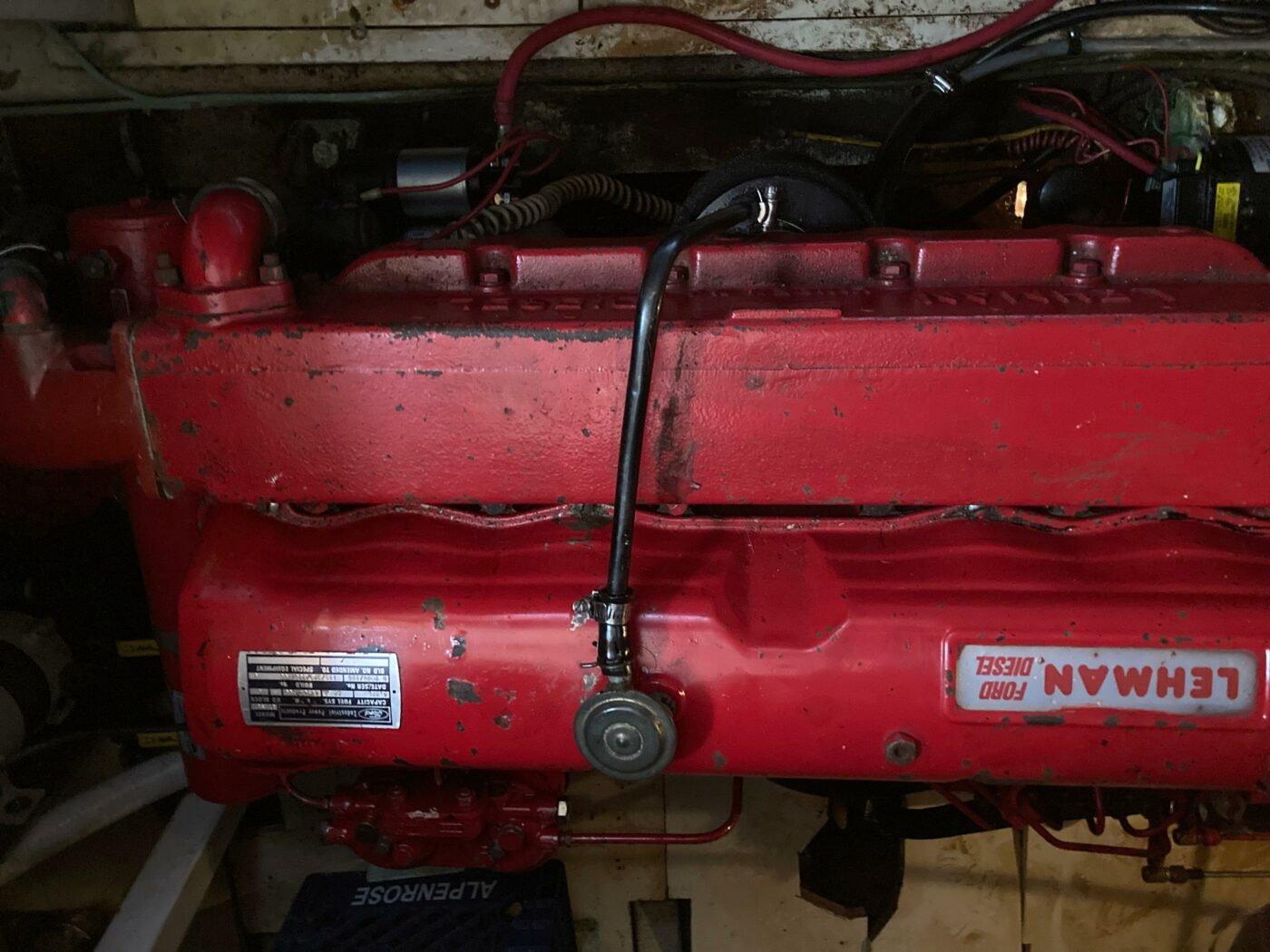

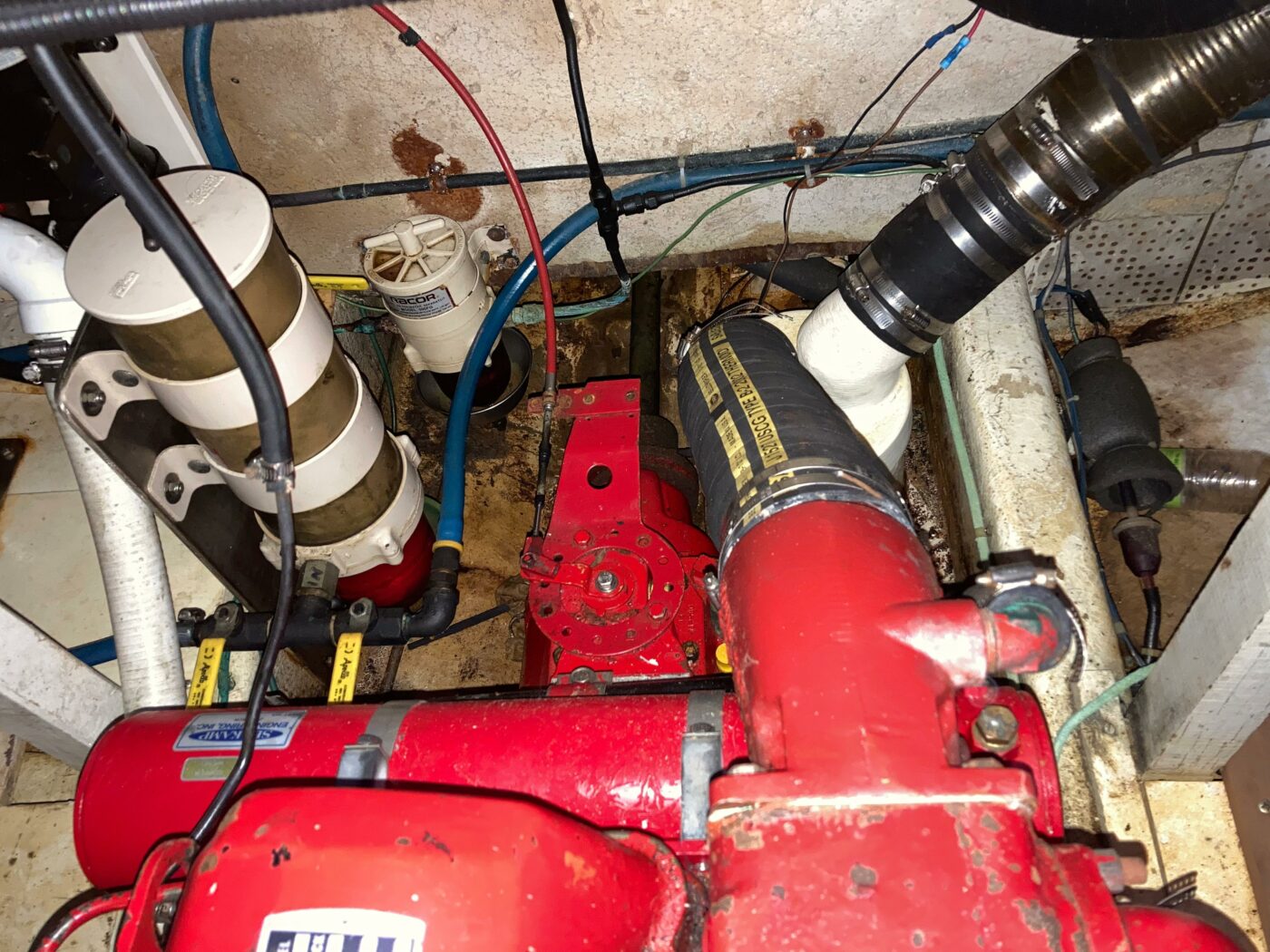

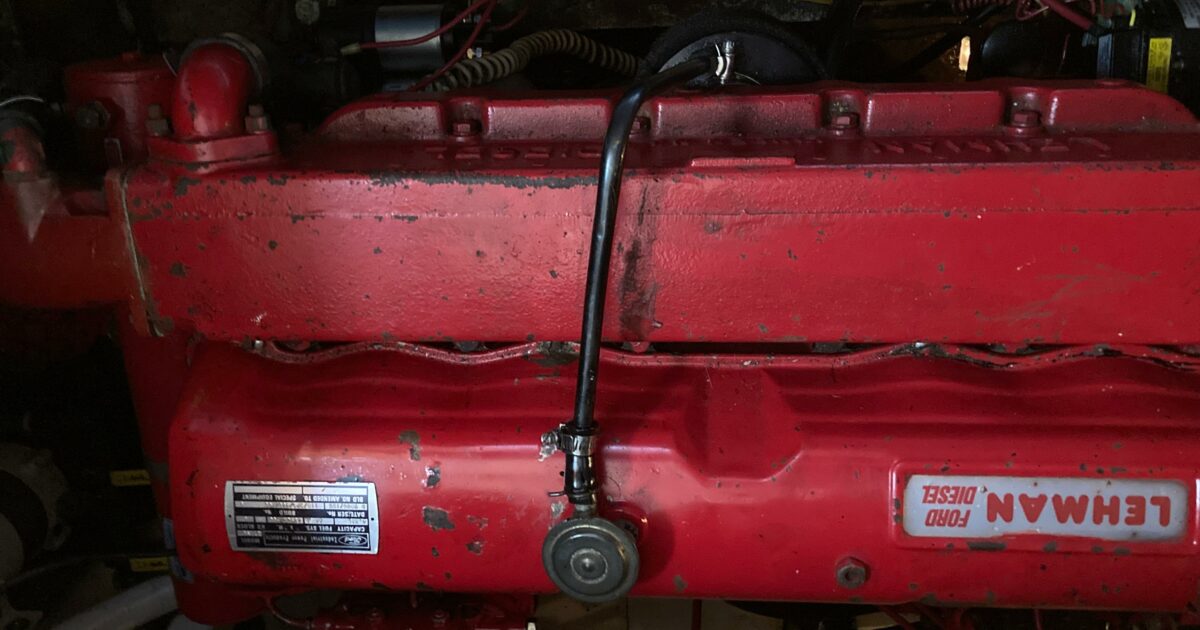

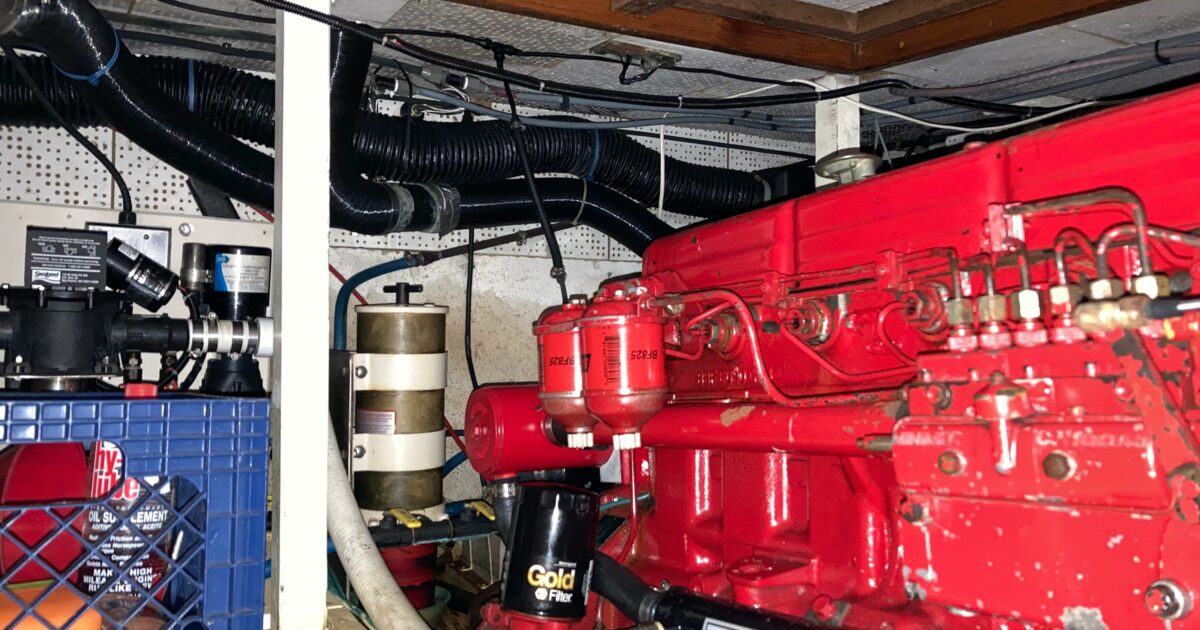

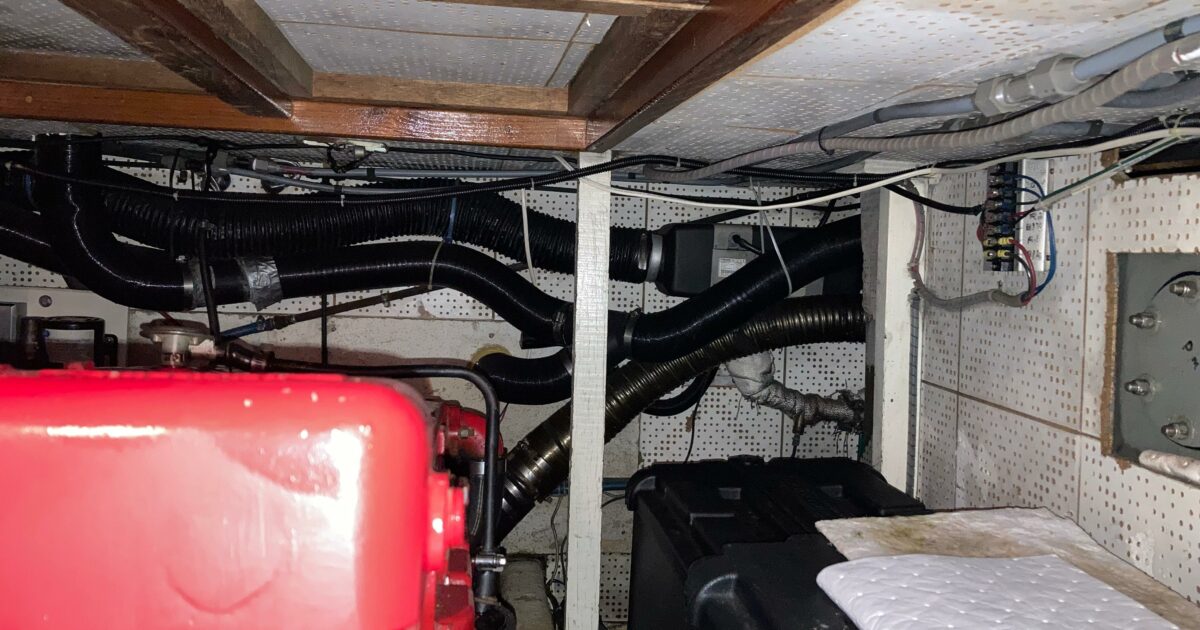

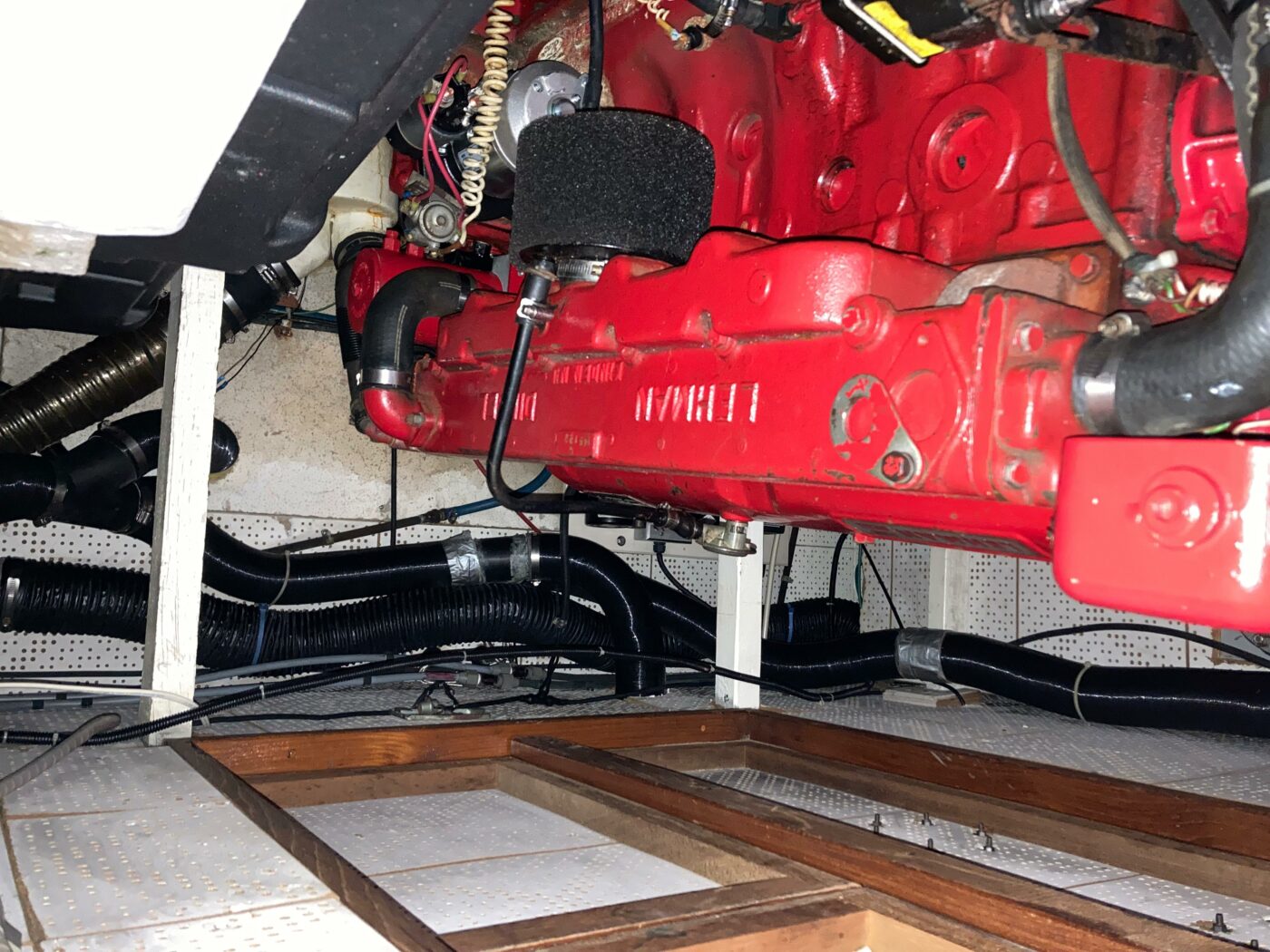

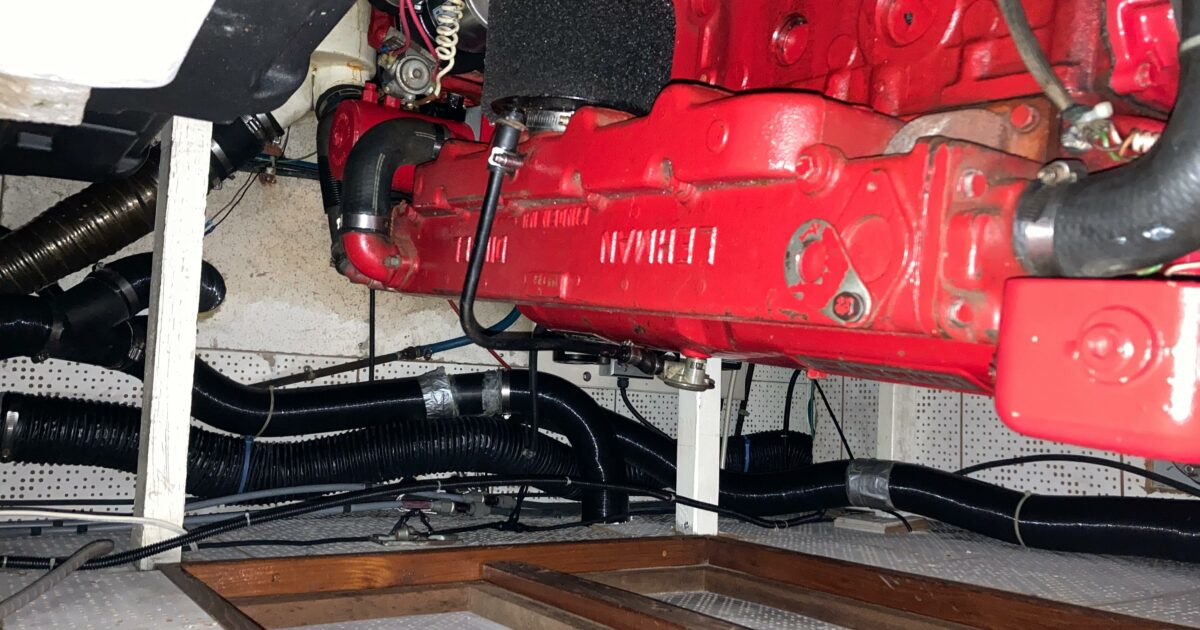

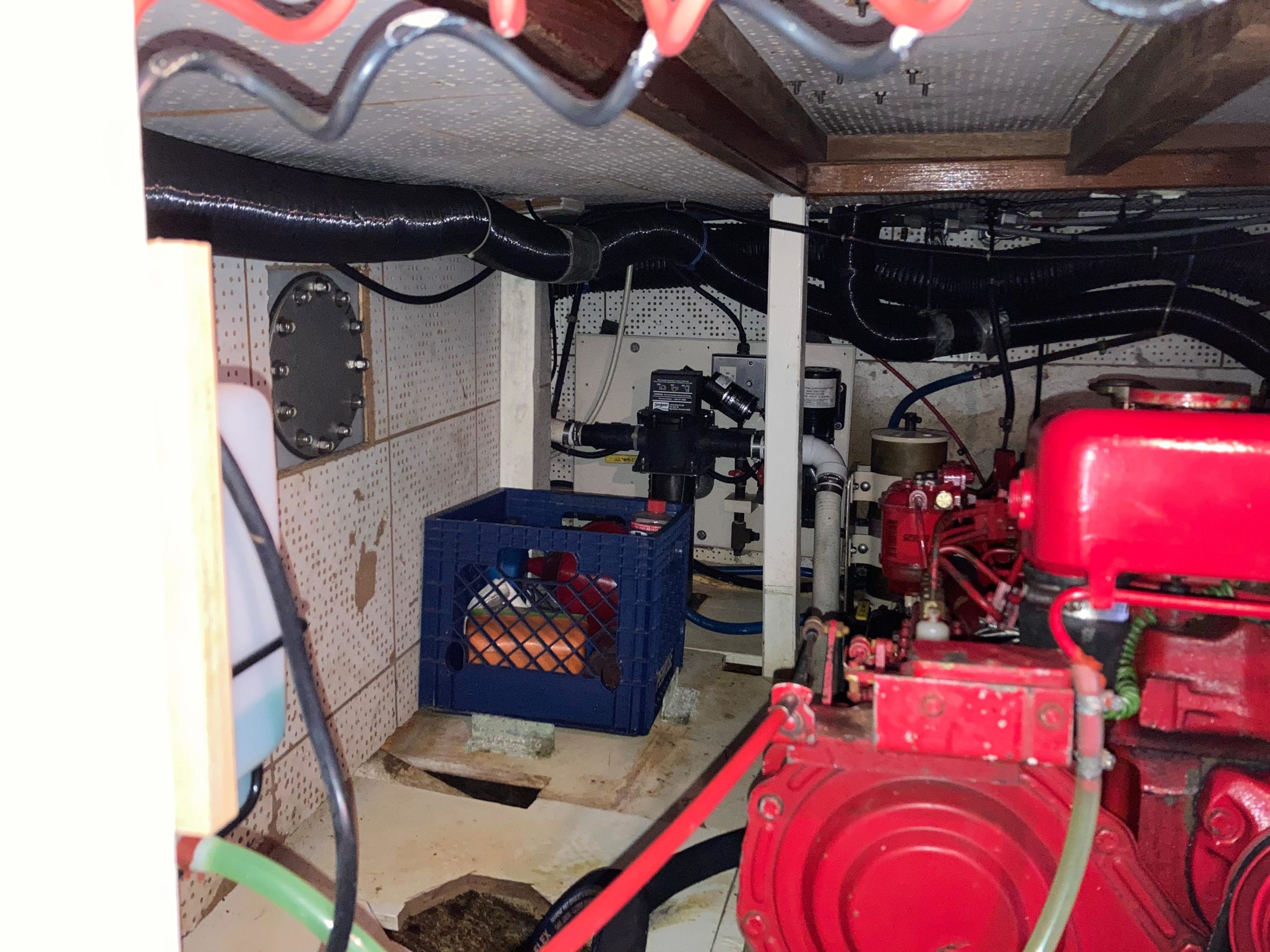

ENGINE Main engine(s): Ford Lehman No. of engines: One Model no.: 2715E Serial No.: D9800/155 Fuel: Diesel Rated: 120 hp Year: 1980 Displacement: 380 cu.in./6.22 liters No. of cylinders: Six Normally aspirated Hours shown: 2931.8 hrs. Fuel lines: A1 fuel hose. & copper Ventilation: Natural Cooling system: Freshwater Exhaust system: Wet injected Last overhauled: Original Fuel filters: One primary filter by Racor serves the main engine. Two secondary filters on the main engine. Lube oil filters:One 2
MARINE GEAR Transmission(s): Standard Manufacturer: Paragon Gears Model: P33AL Serial No.: Z8169L Reduction gear ratio: 2.0 to 1 Control system: Two stations with cable throttle/shift controls by Morse Control panels: Two stations with gauges & audible alarms Steering system: Two stations wheel steering to Wagner hydraulic system to tiller

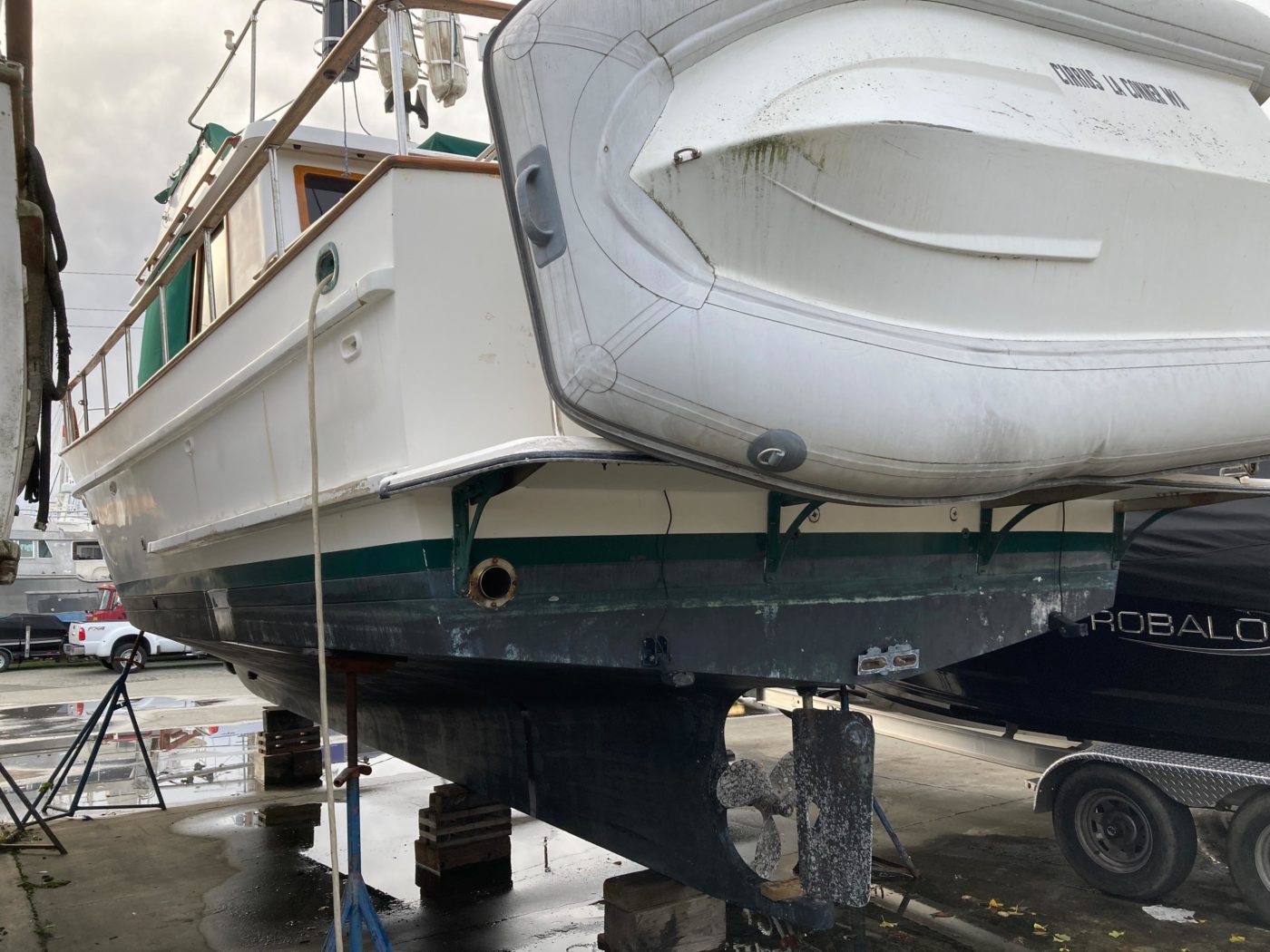

RUNNING GEAR Propellers: One Make: Unknown Material: Bronze Blades: Three Size: 22 in. diameter Pitch: 13 in. Left-hand rotation Shafting: One-piece 1½in. stainless steel. Struts: None

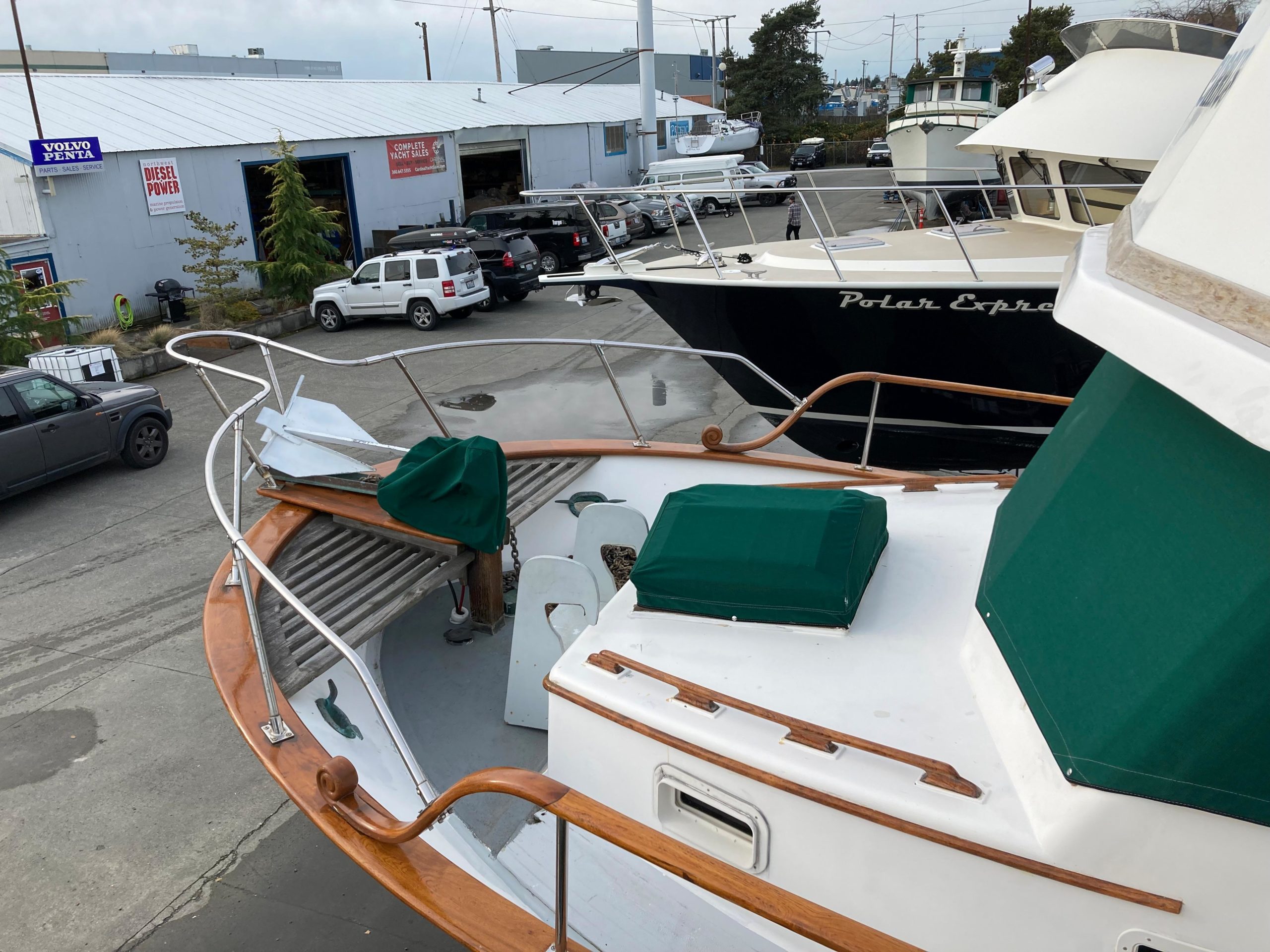

DECK GEAR Anchors: One Primary: 35# Danforth CQR-type with abt.100 ft. of 5/16th in. chain & 200ft. line rode. Spare: 35# Danforth-type with 10ft. of chain & 200ft. line rode Anchor winch: Electric by Ideal Model: CWM Condition: Good Deck fittings: Stainless steel & bronze Condition: Good Mast/booms: Hinged aluminum mast with wood lifting boom. Condition: Good Radar: Aluminum mount on mast Condition: Good Boat davits: None. Weaver dinghy brackets on the swim step. Condition: Good Miscellaneous: Teak handrails. Three rubber fenders. Stainless steel fender holders for three fenders.
TANKAGE Fuel tank #1 150 gals. Material: Steel with deck fill & vent Fuel tank #2 150 gals. Material: Steel with deck fill & vent Water tank #1 100 gals. Material: Stainless steel with deck fill & vent Water tank #1 60 gals. Material: Stainless steel with deck fill & vent Holding tank 40 gals. Material: Fiberglass with deck evacuation & vent Miscellaneous: One 20# LPG tank under upper helm console
NAVIGATION & COMMUNICATIONS Compass: Aquameter Saturn @ lower helm Type: Magnetic Size: 4in. Adjusted: *No deviation card seen Secondary compass: Ritchie @ upper helm. Type: Magnetic Size: 4 in. Adjusted: *No deviation card seen Fluxgate: No Autopilot: None Radar: Garmin 741XS system radar, 32 miles with LCD display @ lower helm. Direction finders: Garmin 741XS system GPS @ lower helm. Standard Horizon 150C GPS/Chart @ upper helm Fathometer: Garmin 7212 system fathometer @ lower helm. Lowrance X28 depth @ upper helm VHF: Two. Shakespeare SE2510 VHF radio @ lower helm. Shakespeare SE2510 VHF radio @ upper helm. CB Radio: None

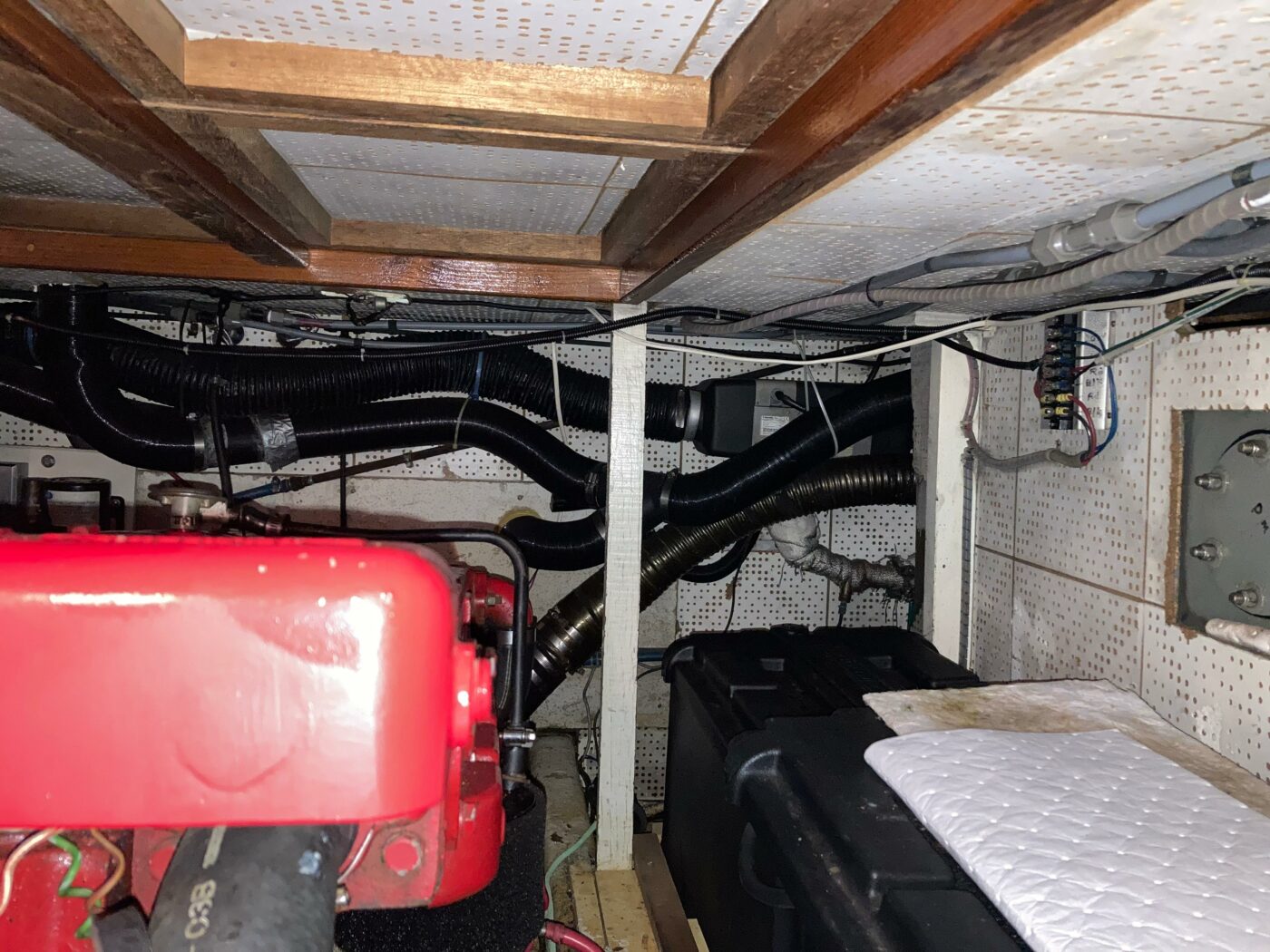

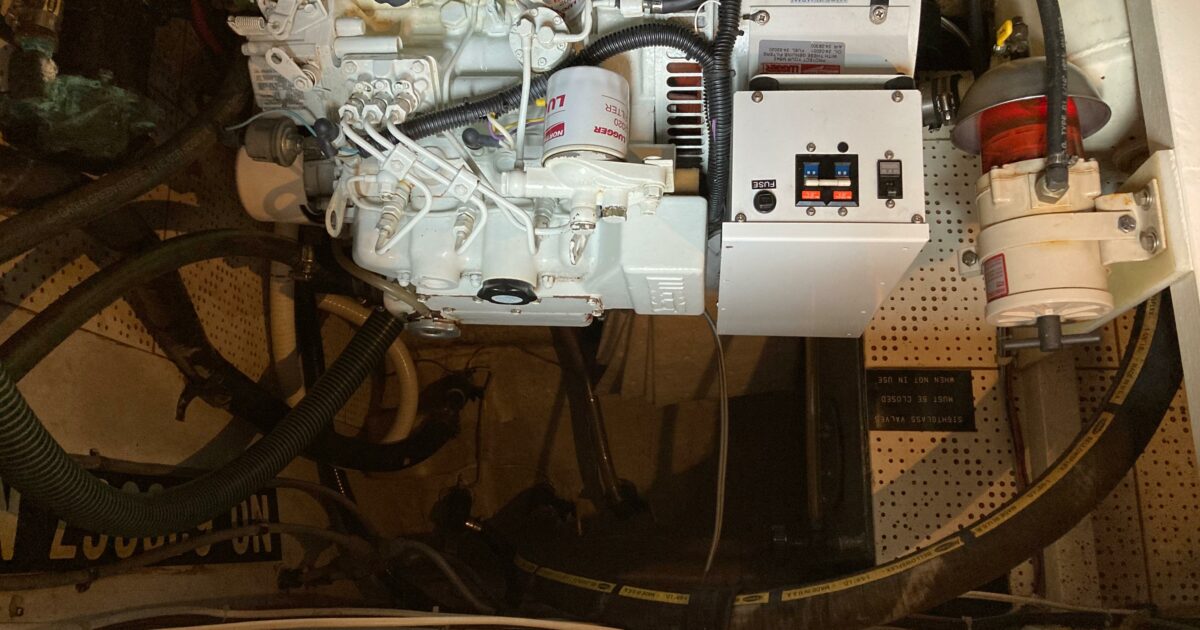

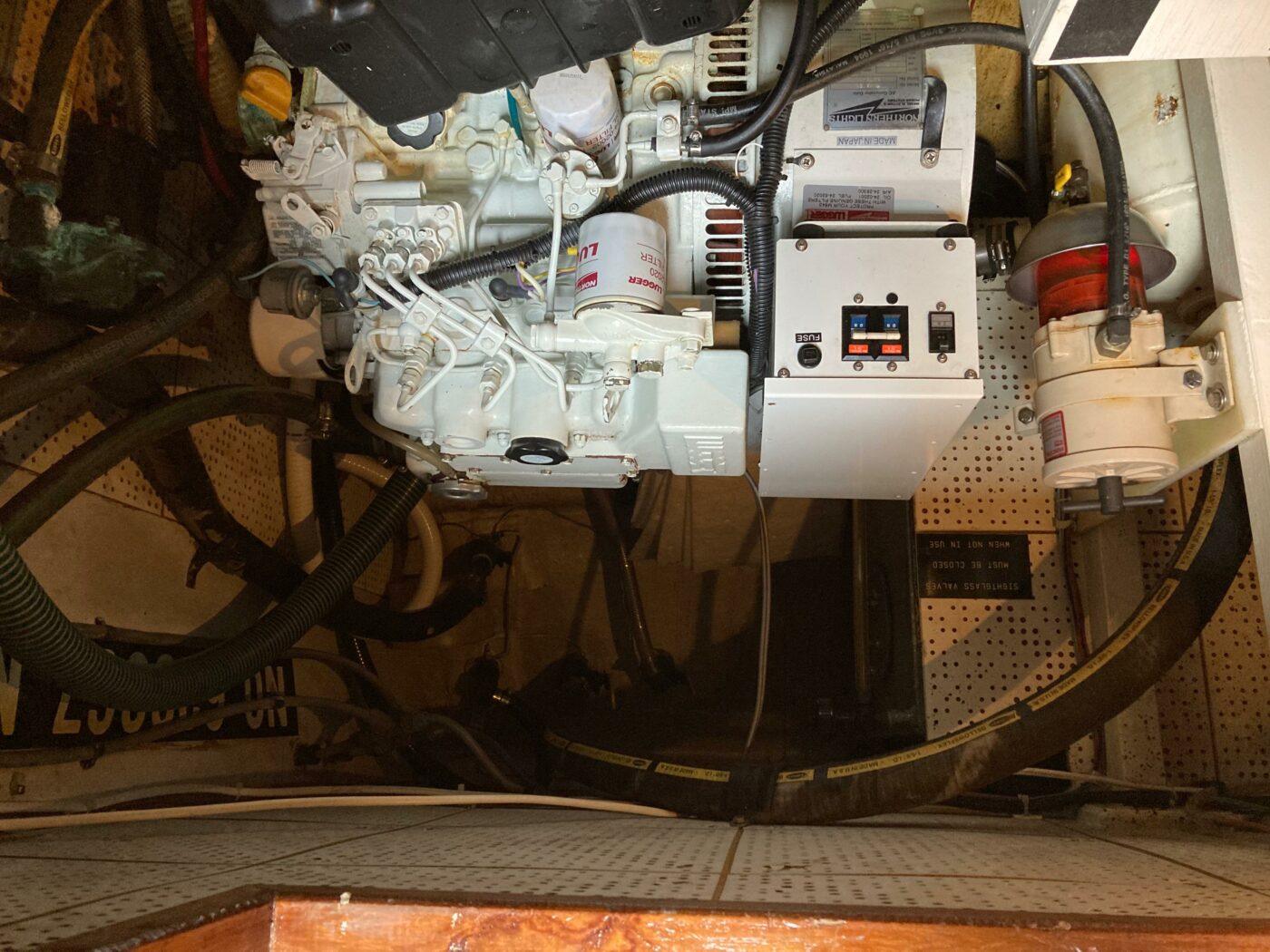

ELECTRICAL System noted for 12V DC, 120V AC, 30 amp service. System supply: Batteries, shore power, generator. Four batteries for 12V system: Two banks One Group 24 Genset start battery. One 8D AGM engine start battery Two 8D AGM batteries for house Generator: 4.5 kW diesel-powered by Northern Lights, 801.2 hrs. Model: TF-276K Serial no.: KO 7841 Alternator(s): 90 amps Inverters: None Battery charger: 40 amp by Professional Mariner ProNautic 12-40P System distribution: Copper wire 30 amp shore power service System protection: Circuit breaker panels for 12V DC. Circuit breaker panels for 120V AC. Master battery switch: One Polarity indicator: None Miscellaneous: A shore power cord. Voltmeters for 12Volt DC. Voltmeters for 120V AC.
3 GALLEY Sink: Single stainless steel Galley pumps: Pressure water. Refrigerator/Freezer: Norcold 4 cu.ft. under-counter refrigerator with small freezer compartment Stove: Four burner stainless steel countertop with oven by Magic Chef heated by propane *See Recommendations. No flame failure safety devices on burners/oven. Microwave oven: No Miscellaneous: Teak cabinetry, laminate countertops.

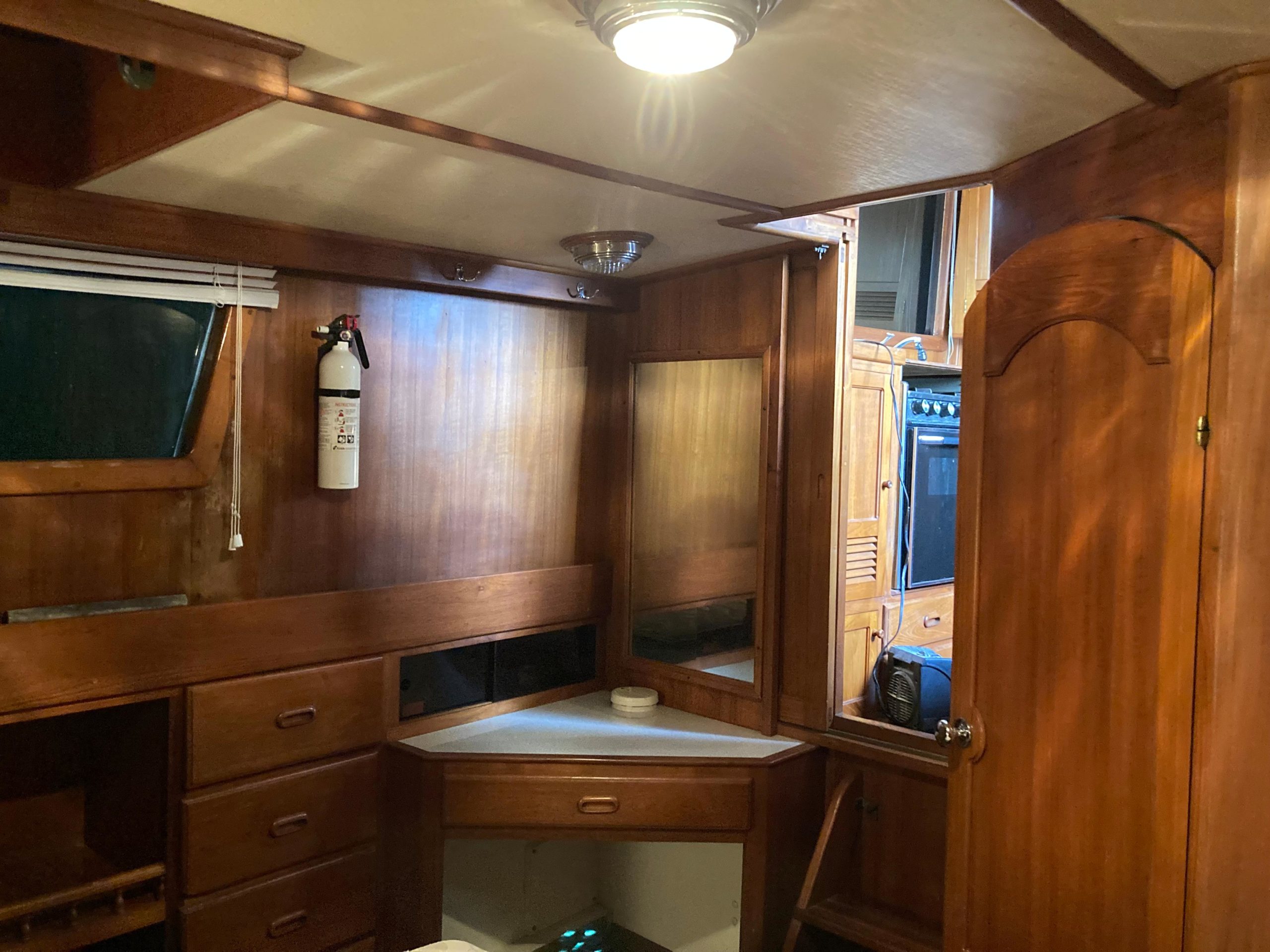

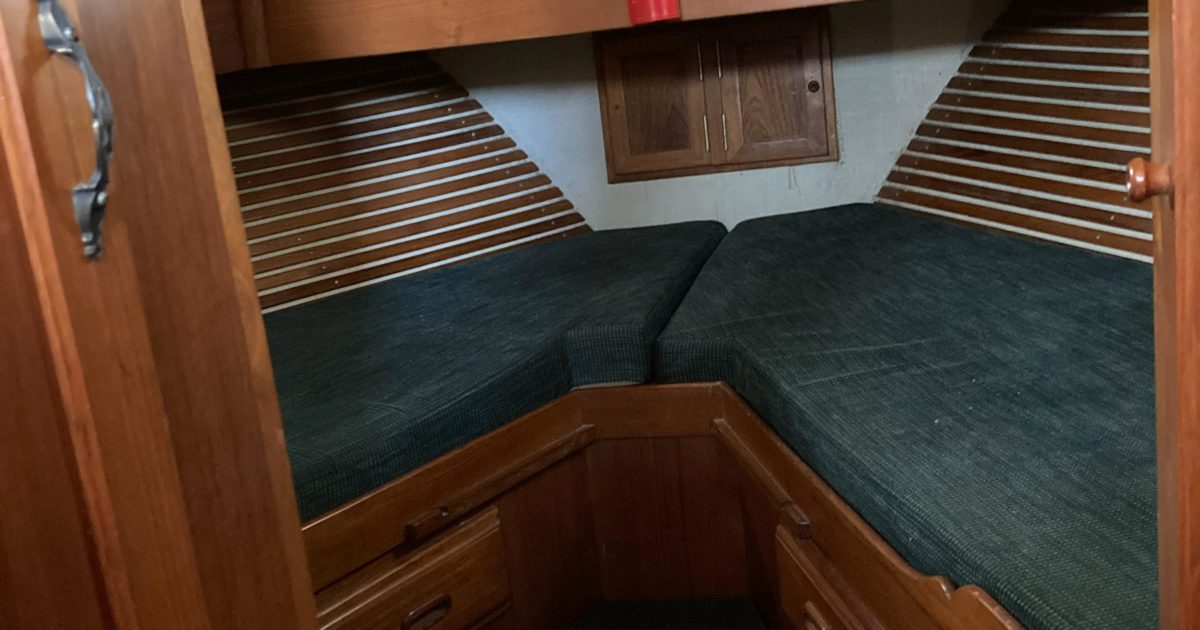

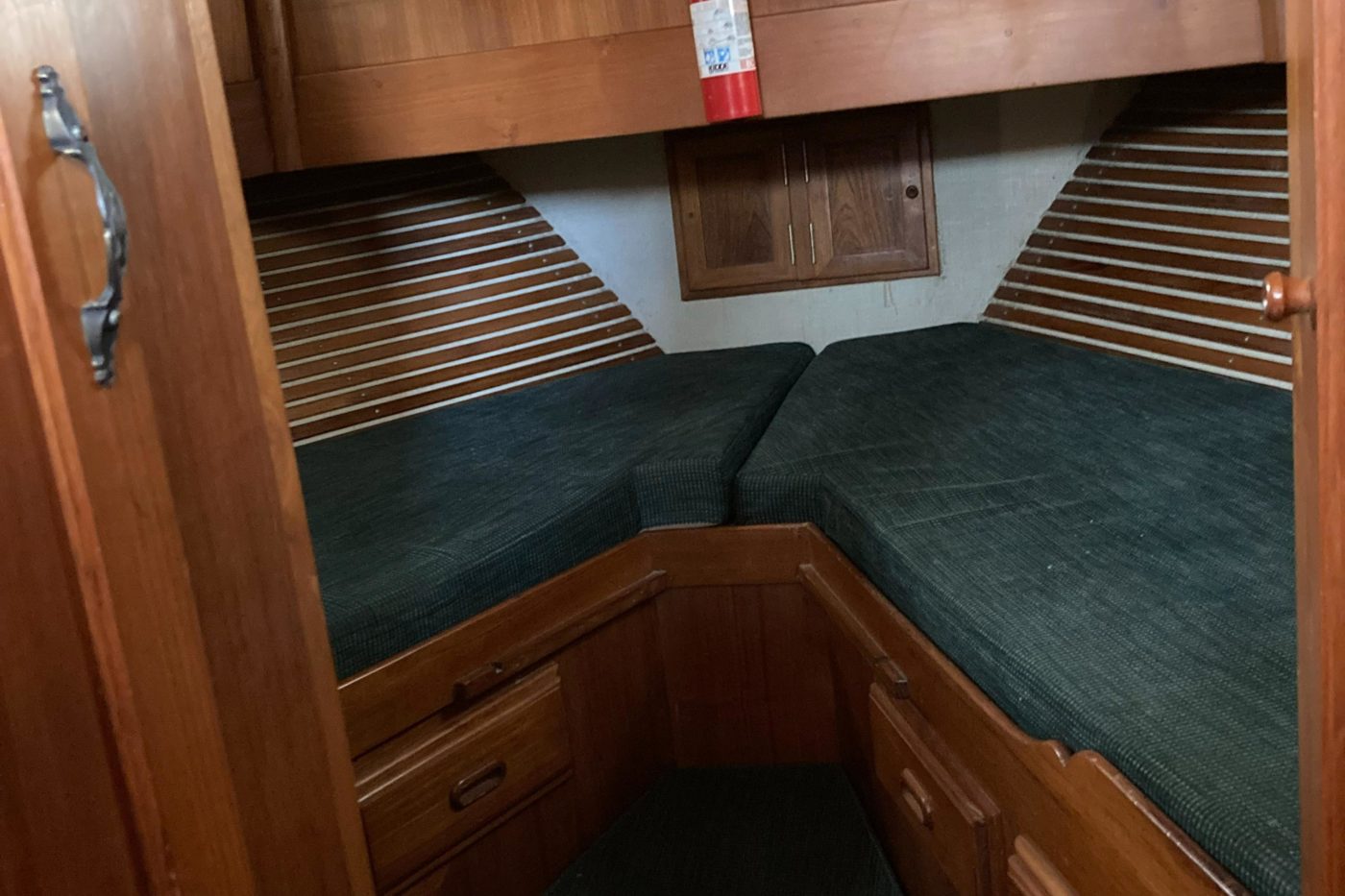

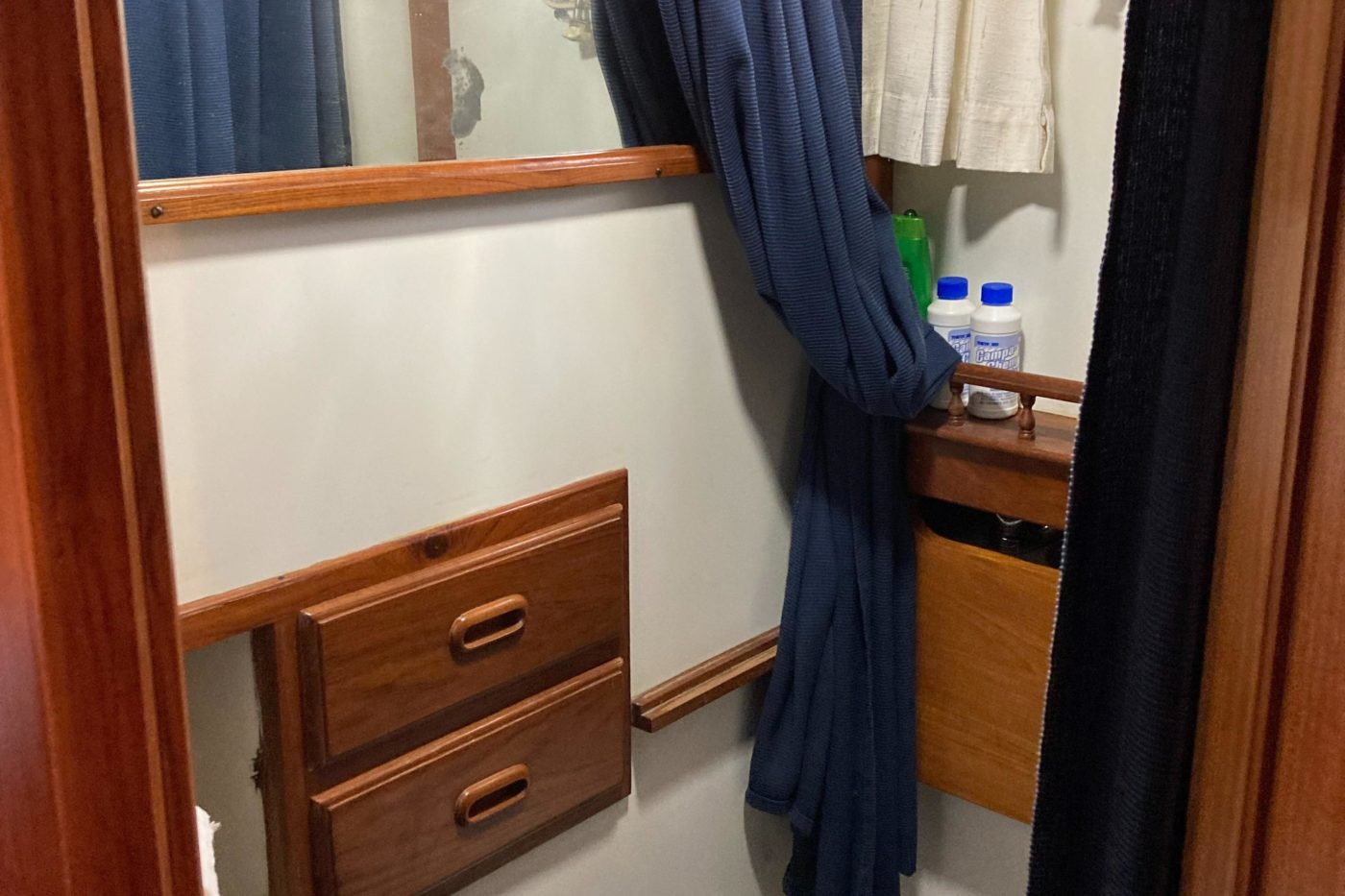

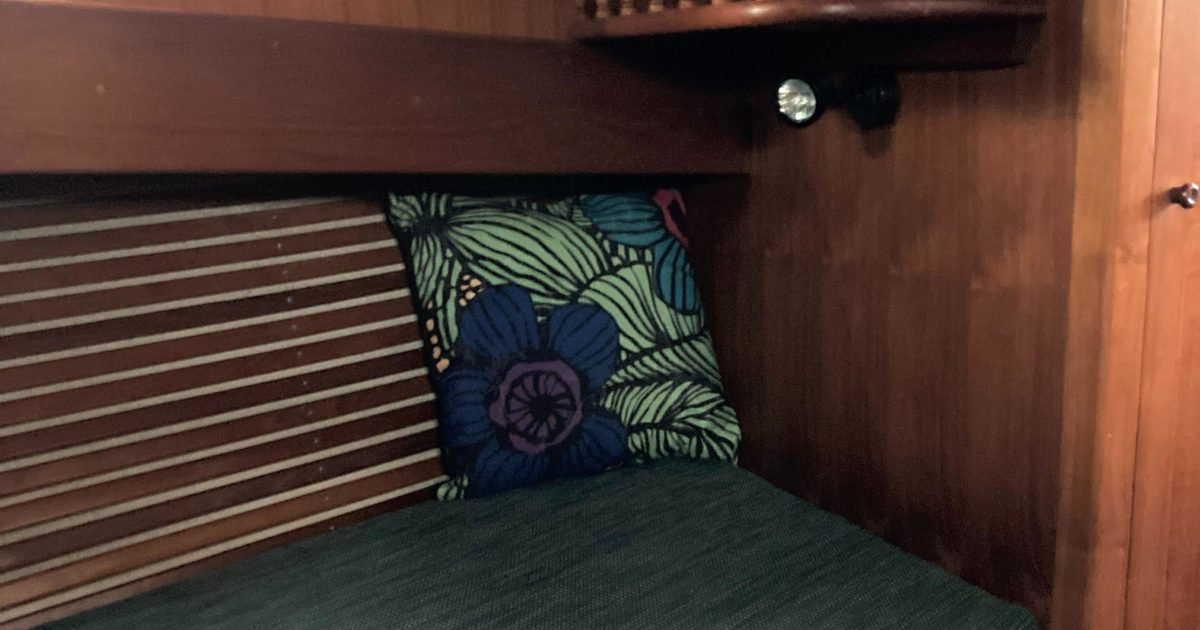

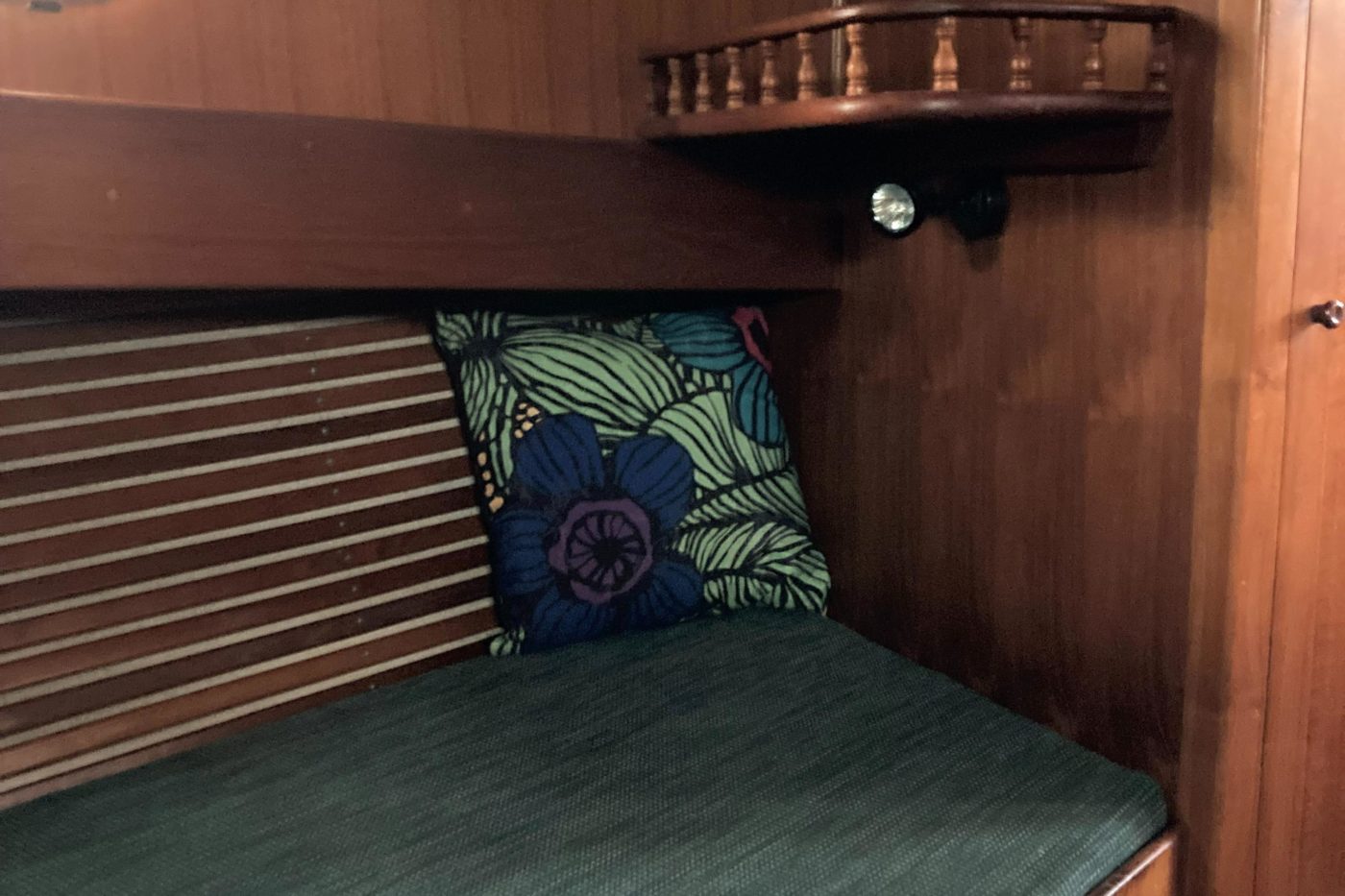

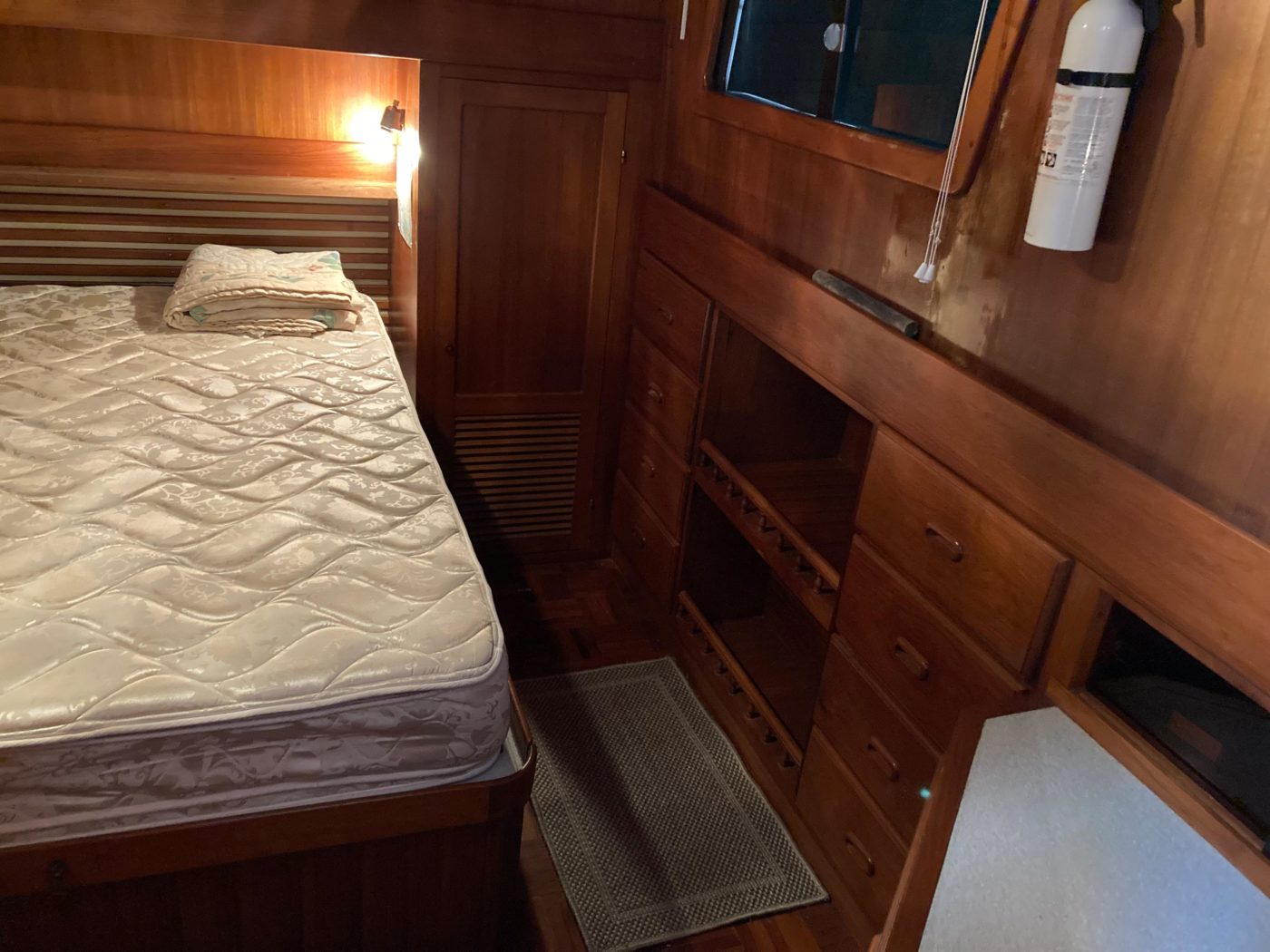

ACCOMMODATIONS Sleeping accommodations for six persons: Two in forward cabin vee berth Two in aft cabin double berth Two in convertible dinette Marine toilet(s): Two electric Shower: One handheld in forward head & one handheld in aft head. Miscellaneous: Teak storage lockers
